Best price OEM E27 LED Lamp Aluminum LED Light Bulb , High illumination Aluminum LED Bulb white lamp body , High PF Edison 2835

2015 hot -selling E27/B22  SMD 2835 Aluminum  LED BULB  Lights

The technicl parameter of  E27 / B22  LED BULB Lights

E27 / B22  indoors  LED Bulb  Lamp

1,              TRANSMITTABLE SHADE:Imported PC and Diffusion of light powder, the new material make its light transmittance over 92%,improve the use ratio of light efficiently, the double plug on the lamp shade make the connection between the lamp shade and the lamp body tightly, never loose or fall off.

High quality  E27 / B22  indoors  LED BULB Lights from China

2,LED LAMP PANEL:The Aluminum substrate, it’s made of Aluminum board, which the heat conductivity coefficient is 2.0,the thick insulating layer can bear a high voltage of 3000V, the imported chips work with the pure copper support, make it can emit a strong light of 100-110LM/W, pure gold conductor of 0.9999 ensure the high power LED work for a long time

China   E27 / B22  indoors  LED BULB Lights

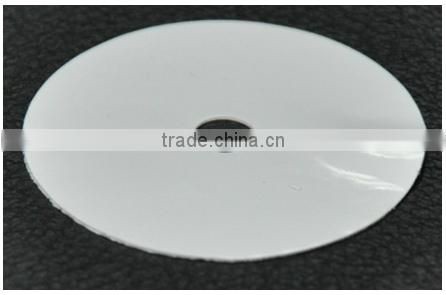

3,SILICONE SHEET:For the conduction part, we follow the way of international jiant-- philips, the thermal conductive silicon sheet are rich in Alumina and graphite powder, they can form heat conduction channel quickly, the heat is transferred from Aluminum plate to the Aluminum lamp body, the heat conduction speed is significantly much higher than the conventional thermal conductive silicone and no pollution.

  E27 / B22  indoors  LED BULBS

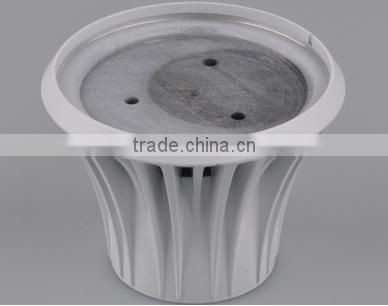

4,RADIATING LAMP BODY:ADC12 International standard Aluminum is the radiator material, the main components: Al,Mg,Cu,Si, can help the lamp release heat easily, the window in the lamp body accelerate the air convection, finally ensure the light efficiency durable.

E27 / B22  indoors  LED BULBS

5,CONSTANT CURRENT ISOLATED POWER SUPPLY: We adopt the international advanced scheme of external MOSS tube, high temperature resistant, the constant current accuracy reached 99%,when it works in the input voltage range of AC100-250V; The Low voltage output is completely isolated with the high voltage input side, guarantee the safety of the products; Double-sided circuit boards and copper foil line of 1A can bear 3000V high pressure work; Pure copper transformer, super long life electrolytic capacitor, green solder of 63 °,with exquisite manufacturing technology, make its designed life up to 50000 hours; Really achieve the goal of energy-saving and longevity,no interference!

E27 / B22  indoors  LED BULBS

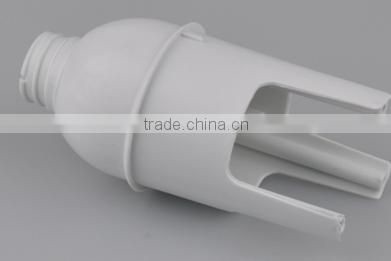

6,THE DRIVER BOX:

 It’s made from imported PBT with fiber, heat resistance of 180°,and anti-flaming,even if the short circuit formed under influence by outside factors, it also won't cause plastic burning and lead to fire; Built-in driver card slot, firmly fixed the driver, the opening cooling area,top-putted ventilation skylight help to cool the driver more efficiently;For the Lamp holder, we adopt spiral tooth design,to make it contact more closely with iron cap of the bulb and avoid the risk of plastic taillight aging body fall off.

E27 / B22  indoors  LED BULBS

7,LAMP HOLD:

we adopt environmental method of no welding,

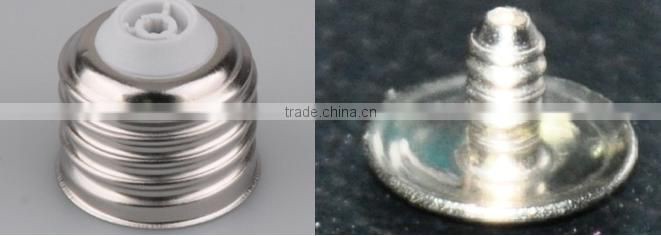

with electroplating on the surface to avoid rusting.  8,THE IRON CAP OF THE BULB

JAY Lighting's  special  E27 / B22  indoors  LED BULBS

9,SCREWS: electroplating,extended and deep spiral

10,THE BLISTER PACKING, new materials with a thickness of 50SM,transparent and without impurities.

 11,PAPER CARD: It’s a double-sided coated paper of 157g,grossy,soft and clear.

 12,CARTOON: It’s made of KMK strengthening double pit kraft paper board, moisture proof and shockproof effectively.

13,THE STACK OF THE AL PARTS: With blister packing to avoid the touch of each other and keep the goods off the paint.

14,      CHIPS PLACING

15,BLISTER PACKING

16,MORE THAN 24 HOURS AUTAMATIC AGING PROCESS UNDER HIGH AND LOW TEMPERATURE,HIGH AND LOW VOLTAGE.

Zhongshan Guzhen JAY Lighting Electrical Euipment Factory

The professional manufacturer of High bay Bulb

Welcome contact me for more information about our LED BULBS lamps or other LED Bulbs !

Hope we can establish good relationship with you !

Fion Lai ---Skype :jaylighting03  /  +86 180 2211 6308 .
