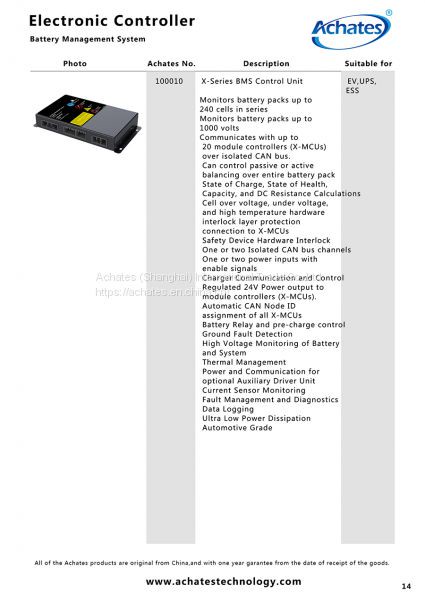

BMS Control Unit Up to 240 Cells

Monitors battery packs up to 240 cells in series

Monitors battery packs up to 1000 volts

Communicates with up to 20 module controllers (X-MCUs) over isolated CAN bus.

Can control passive or active balancing over entire battery pack

State of Charge, State of Health, Capacity, and DC Resistance Calculations

Cell over voltage, under voltage, and high temperature hardware interlock layer protection connection to X-MCUs

Safety Device Hardware Interlock

One or two Isolated CAN bus channels

One or two power inputs with enable signals

Charger Communication and Control

Regulated 24V Power output to module controllers (X-MCUs).

Automatic CAN Node ID assignment of all X-MCUs

Battery Relay and pre-charge control

Ground Fault Detection;High Voltage Monitoring of Battery and System

Thermal Management

Power and Communication for optional Auxiliary Driver Unit

Current Sensor Monitoring

Fault Management and Diagnostics

Data Logging

Ultra Low Power Dissipation

Automotive Grade

Packaging Details:

Cardboard packaging inside, carton packaging outside ,anti-static

Shipping:

By Express: DHL,UPS,TNT ; By Air Cargo; By Sea

Payment:

PayPal, Western Union, T/T
