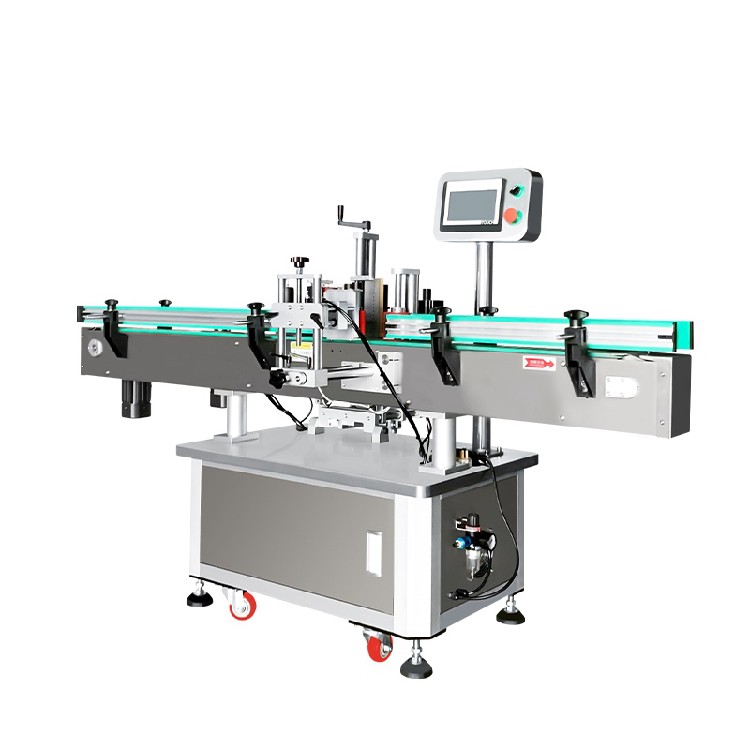

Labbler Ampullatargeting machine

〖equipment introduction 〗

The machine can realize the circular bottle or cylindrical object circular labeling, can be affixed to half circumference, full circumference, suitable for wine industry, food, daily chemical, cosmetics, beverage, pharmaceutical, chemical and other industries. This machine can be optional bottle management machine, can also be directly connected to the front production line, so that the bottle will automatically enter the labeling machine, increase efficiency.

〖machine features 〗

〓 Flexible application, bottle standing labeling, with automatic bottle separation function, can be produced alone, but also connected to the assembly line production.

〓 Excellent labeling quality, the use of elastic pressure covering belt, labeling flat, without wrinkles.

〓 The standard belt detour adopts the correction mechanism, and the standard belt does not go astray. The inclination of the labeling part has eight degrees of freedom, and the label coincidence degree is high.

〓 Intelligent control, automatic photoelectric tracking, with no object without labeling, no label of automatic correction and automatic label detection function, to prevent leakage and label waste.

〖machine parameters 〗

Label length range: 40 to 300 mm

Product height range: 25~230mm

Width of the label base sheet: 20~130mm

Product diameter range: φ 40~100mm

Labeling accuracy: ± 1mm (excluding product, label error)

Labeling speed: 30~50 pieces / min (related to bottle and label size)

Label drum inner diameter: Φ 76mm

Applicable power supply: 220V, 50Hz

Dimensions: L1750 * W800 * H1450mm

Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
