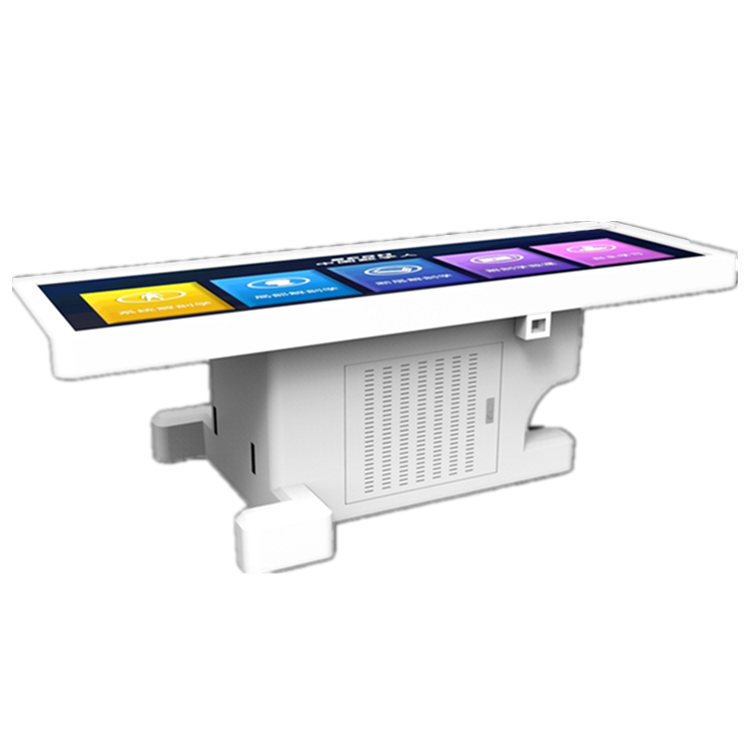

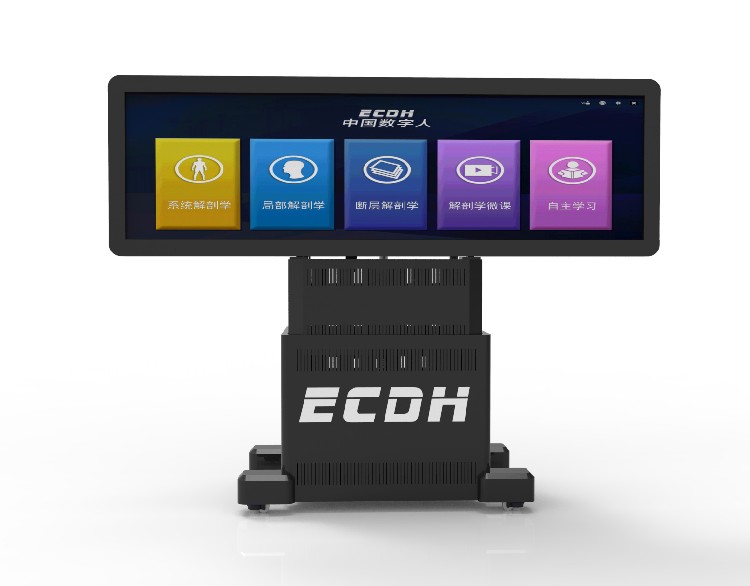

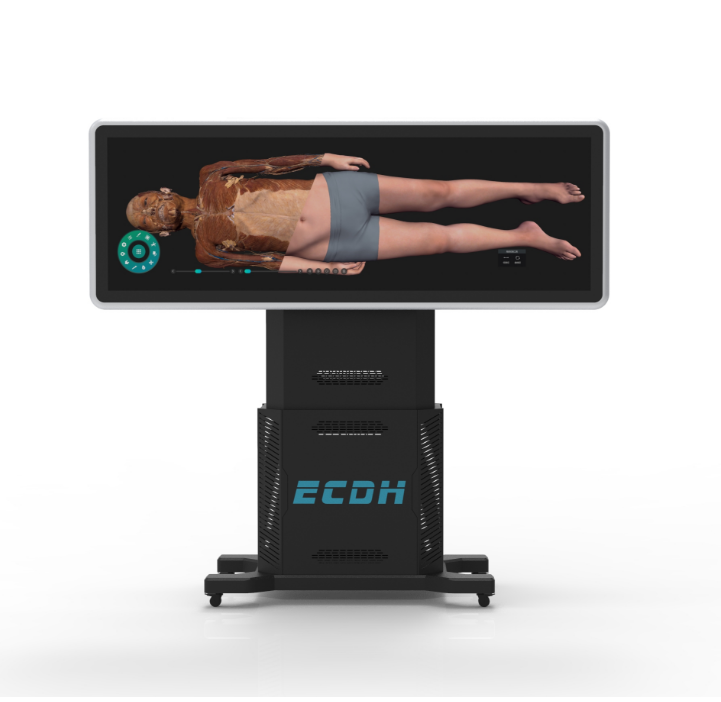

84-inch virtual anatomy table, intelligent medical operation table, capacitive touch screen, virtual anatomy table, fully laminated touch screen

Infrared touch parameters

Touch area: The full display range of the screen

Induction technology: Infrared tube pairing induction, with no less than 300 pairs of tubes

Sensing methods: Infrared touch, optional (capacitive touch, nano touch)

Touch modes: two-point touch, four-point touch, six-point touch, eight-point touch, etc

Sensing objects: Fingers, pens, or any other opaque objects

Sensing size: Diameter greater than or equal to 5mm, recommended greater than or equal to 7mm

Resolution: 4096*4096

Response time: <12ms

Cursor speed: multiple points, mouse 125 points per second

Service life: More than 60,000,000 clicks

Screen protection glass: 3mm optical glass, tempered

Touch screen power supply: USB power supply (4.6-5 volts, DC)

Bower consumption: Less than or equal to 1w

Multi-point operation: Compatible with X86 operating systems and Android systems, it enables 2-point and multi-point operations and writing, and supports gesture recognition in Windows 7

Positioning correction: Complies with HID device standards, no positioning is required, and the corresponding management program is used for positioning correction. 4-point or 5-point positioning methods are available for selection

Anti-light attenuation function: Anti-light attenuation circuit, effectively preventing performance degradation caused by long-term operation

Detection software: It is equipped with a touch screen detection software, which intuitively reflects all the parameters of the tubes on the touch screen and also provides a full-screen line drawing detection function

Anti-light interference function: It can operate under direct sunlight
