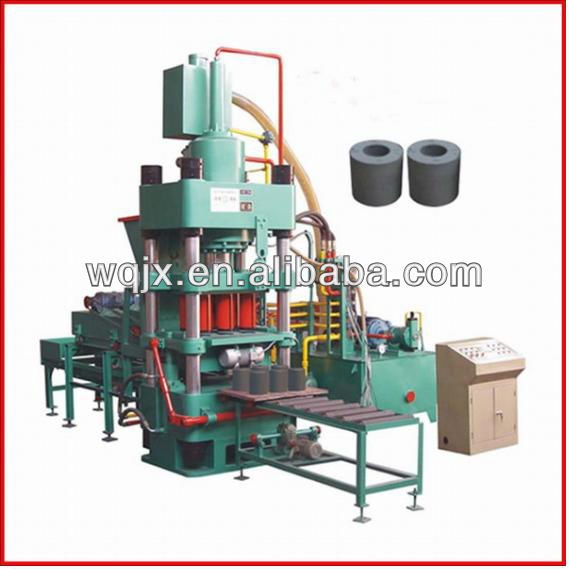

2013 Hydraulic Waste Metal Block Machine/Copper Block Press Machine/Aluminum Block Briquette Machine

Brief Instrution:

Metal briquetting presses are industrial machines that maximize the use of metal scraps by compression into metal briquettes. The source material can vary from soft metal to hard metal scraps, including aluminum, copper, brass, zinc, bronze, cast iron, and steel as well as titanium and magnesium. Metal briquetting machines are capable of compacting many other scrap materials as well.

In addition to significantly reducing the volume of the scrap metal from various machining operations, these machines produce metal briquettes ideally suitable for feeding smelting furnaces. As a result, companies that sell scrap metal and companies that produces & reuse scrap metal enjoy tremendous economic benefits
Press metal chips into solid briquettes to achieve financial benefits through improved smelting and simpler waste management
The metal chip briquetter processes short, loose chips from machining of non-ferrous or ferrous metals and cast iron into cylindrical briquettes. The briquetter with closed dies are designed for ferrous metals and cast iron. It produces cylindrical briquettes, of a diameter from 60-80 mm (2.4-3.15 in) and length up to 110 mm (4.3 in). With an inlet hopper, conveyor, sorting machine and material level sensor the briquetting press operation can be fully automated.
Savings in factory floor-space
Savings in internal and external transportation costs
Savings in recycling costs
Increase the waste purchase price

Features:

Eletric part is manipulated by PLC system,strong anti- interference, automatic and easy operation.
Tandem type oil cylinder, high velocity of movement and productivity.
Monoblock cast steel body, avoiding rupture of weld, stable and long life.
User self prepares helix feeder, chain discharge device and guard cove, according to work condition.

The main benefits:

• Significant reduction in the space required to store metal scraps
• Increased value of your industrial metal scraps
• Ability to create briquettes to efficiently feed scrap metal into smelting furnaces
• Near total recovery of lubricating oil from metal waste
• Cost and time savings resulting from less handling and transportation
• Cleaner production environment and better external environmental impact

Raw materials

Hongji Briquetters Can Handle,Aluminum,Brass,Bronze,Cast-iron,Copper,Magnesium,Steel,Tire wire,Titanium,Zinc,Most other metals

Type

ZQ25

ZQ40

ZQ63

ZQ80

ZQ100

Nominal pressure

(KN)

200

400

630

800

1000

Block size

100

110

160

240

300

Density

(T/m3)

>5.2

>5.5

>5.5

>5.5~6

>5.5~6

Productivity

(Block/min)

8-12

6-10

5-10

4-8

4-10

Total power(kw)

5.5

7.5

7.5

7.5

11

Weight

of machine(T)

4.5

12

30

65

154

Overallsize (mm)

1250*900*2000

2500*1400*2800

2530*1400*2980

2600*1400*2980

2930*1400*3320
