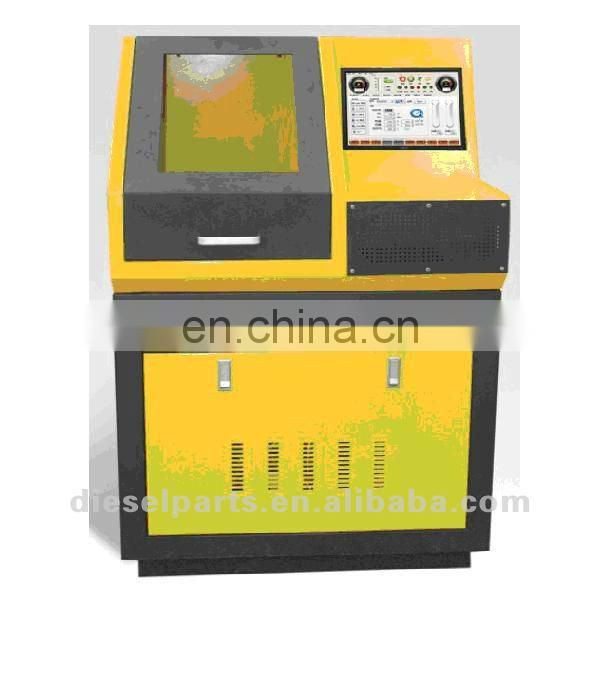

KC-CRI200 CRI-common rail test Bench

KC-CRI200 CRI-common rail test Bench

Features of Products

1 Industrial computer with windows operating system;

2 Having its own data base which can be queried, stored and modified to form a new data base;

3 Adjustable common rail pressure in close-loop control, which is very stable with a fluctuation of ±1Mpa;

4 The common rail pressure is displayed on the computer in real time;

5 The driving signal, the pulse-width and the frequency is adjustable.

6 The injection times and time can be set freely;

7 Over voltage protection function--if the common rail pressure is over 1600bar the machine will stop by itself.

8 Internet connection makes the remote control possible (optional);

9 Safety shield of plexiglass makes the operation very safe.

Characteristics

1 To test the oil supply quantity and oil supply pressure of common rail pumps;

2 To test the injection quantity at startup;

3 To test the max oil injection quantity and the pilot injection quantity of the common rail injector;

4 To test the oil return quantity of the common rail injector;

5 To test the uniformity of the common rail injector;

6 To test the performance of the ratio solenoid valve in the common rail pump;

7 To test the leak tightness of the common rail test bench and injectors;

8 To test the performance of the common rail pressure sensor;

Technical parameters

1 Measurement speed: 0 ~ 4000 r / min;
2 size of the cylinder of the set: 45CC, 150CC;
3 Fuel tank capacity: 60L;
4 automatic oil temperature control: 40 2 °C;
5 Test oil filtration precision: 5μ;
6 provide DC12V/24V power;
7 supply pressure: low pressure: 0 ~ 0.4Mpa, pressure: 0 ~ 4Mpa;
8 pressure: 0 ~ 0.3Mpa;
9 Three-phase power supply: 380V/50HZ or on request;
10 flywheel inertia: 0.8KG • M2
11 center height: 125MM;
12 Output power: 5.5KW, 7.5KW, 11KW and 15KW or on request;
13 Total Size (MM): 2370 960 1880;
14 Net Weight (KG): 1200.
