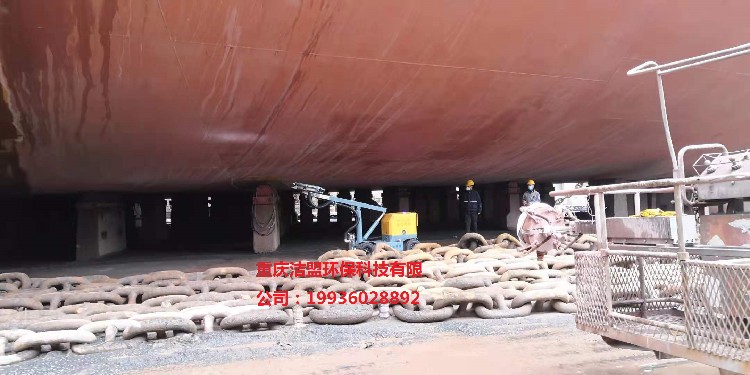

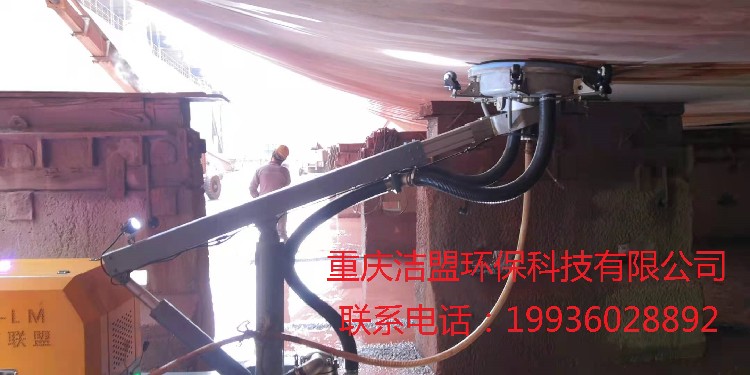

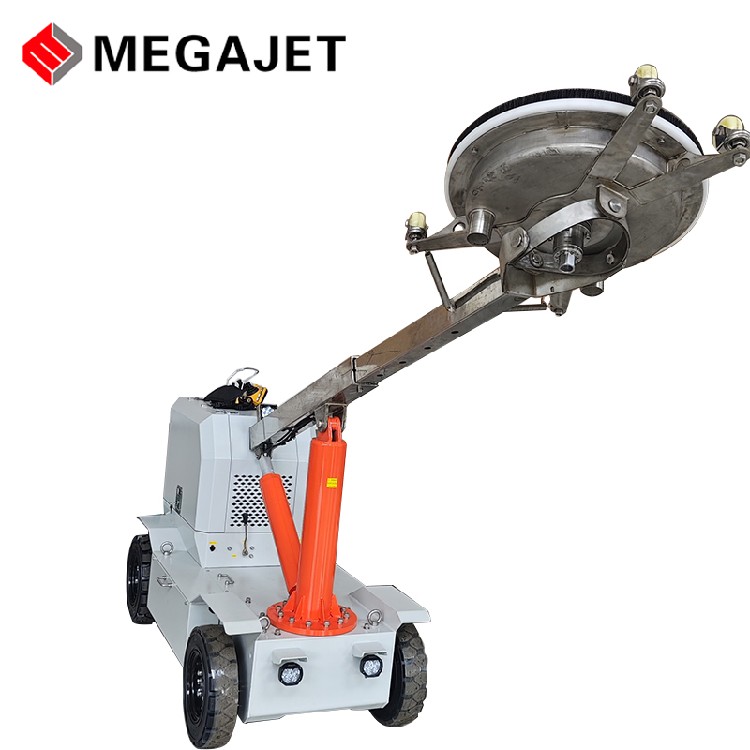

Dedicated robot for dock

Function description of main components:

Engine power indicator: By observing the status of the indicator, one can clearly understand

Engine running status; indicator light off (engine power off)

The indicator light flashes once every second (the engine is in self-check mode)

The indicator light flashes once every 1.5 seconds (the engine shutdown indicator light is constantly on)

Engine power on

Battery Level Display: Displays the battery level of the dock bottom vehicle in real-time.

Main power switch: When turning the switch clockwise to position 1, the main power of the entire vehicle is turned on

The source is activated; when the switch is turned counterclockwise to 0, the main power supply of the entire vehicle is turned off.

Battery compartment: This compartment houses the batteries that power the dock's bottom vehicle.

Charging port: This charging port is used to charge the battery of the dock bottom vehicle. Please

Use a 48V-20A charger for charging.

Electric elevator mast: Operate by pushing up or down on the No. 2 joystick of the remote control

Operate this lifting rod to extend or retract, thereby raising or lowering the cleaning disc

The height of.

Electric swing arm: Control the large swing by swinging the No. 1 joystick on the remote control left and right

Swing the arms left and right.
