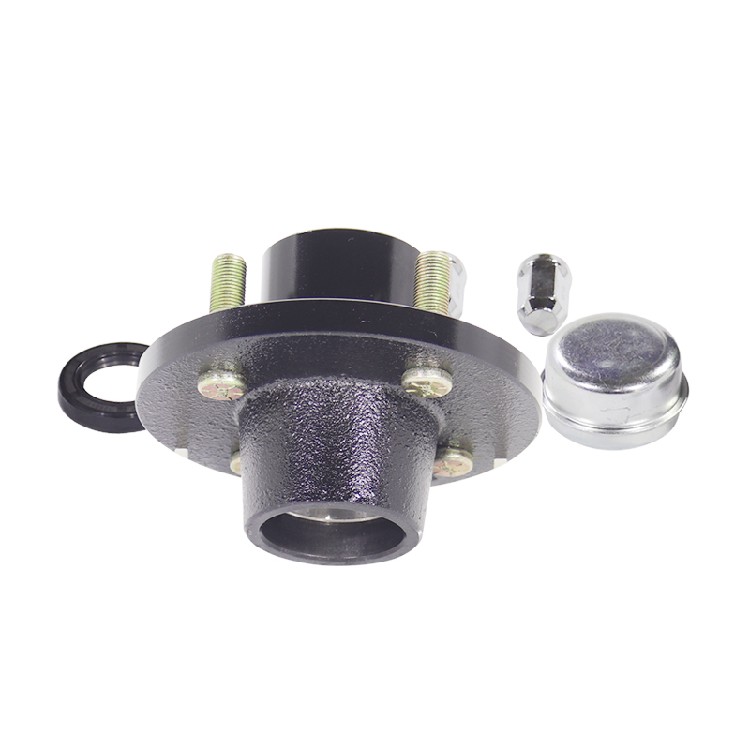

Trailer and RV Specific Non-Brake Chassis Hub Assembly | Shiao Trailer Chassis Manufacturing Factory

Product Name And Title

(1) Compatible Applications

Towable RV, Small Trailer / Light-duty Trailer, Food Trailer / Catering Trailer, Camping Trailer, Travel Trailer, Flatbed Trailer, Camper Trailer, Park Mdeol RV / Park Trailer, Boat Trailer, Shopping Trailer / Utility Trailer, Motorcycle Trailer, Farm Trailer / Agricultural Trailer

(2) Specific Product Name

Chassis, Wheel Hub, Wheel Hub Unit, Wheel Hub Assembly

(3) Other Keywords

Shiao Trailer Chassis, Spindle, Hub End, Complete specifications in stock; professional factory customization available.

Product Selling Points

Product Highlights & Key Advantages:

1. Complete Specifications, Large Inventory In Stock, Direct Source Factory, Free Customization Available For All Model Parameters.

2. The Product Details List 10 Common Categories And 28 Hub Models Along With Their Spindle And Axle Assemblies For Reference. In Addition, We Also Manufacture A Full Range Of Brake Drum Hubs, Brake Drum Hub Spindle Assemblies, Brake Drum Hub Axle Assemblies, Brake Disc Rotors, Calipers, And Related Components.

3. Suitable For A Wide Variety Of Applications Including Towable RVs, Boat Trailers, Flatbed Trailers, Farm Trailers, Camper Trailers, And More.

4. Shiao Trailer Factory Based In China, With Eleven Years Of Industry Expertise, 24-Hour Customer Response Commitment, And A Fast 15-Day Lead Time For Delivery.

Product Specifications

(1) Brand (Trademark / Trade Name): Shiao Trailer

(2) Model (Specifications): Complete Specifications in Stock; Professional Factory Customization Available.

(3) Origin: Jiangsu Province, China

(4) Manufacturing Method: Forging

(5) Material: Iron

(6) Drive Wheels: Driven by the Towing Vehicle (the Trailer itself Gas no Independent Drive System)

(7) Hub Surface Finish: Baked Paint

(8) Stock Availability: Yes

(9) Packaging: Iron Frame Pallets and Individual Neutral Cardboard Boxes

(10) Lead Time: 15 Days

(11) The Following Parameters are Customizable: Spindle Size / Spindle Diameter, Bolt Pattern (PCD), Load Capacity / Rating, and Bearing Type

(12) The Following Parameters are Customizable: Spindle Diameter, Spindle Length, Axle Tube Shape

(13) The Following Parameters are Customizable: Spring center distance (leaf spring center distance), overall axle assembly width, axle tube inner diameter (axle tube ID), spindle journal diameter (or spindle diameter), compatible suspension

10 Common Bolt Pattern Types and 28 Model Configurations

【Common Type 1】

2000 lb, 4‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

2000 lb, 4 on 4" – L44643/L44610 + L44643/L44610 dual bearing, fits 1" inner and 1" outer spindle.

Model 2:

2000 lb, 4 on 4" – LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1‑1/4" outer spindle.

Model 3:

2000 lb, 4 on 100 mm – L44643/L44610 + L44643/L44610 dual bearing, fits 1" inner and 1" outer spindle.

Model 4:

2000 lb, 4 on 100 mm – LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1‑1/4" outer spindle.

—— —— —— —— ——

【Common Type 2】

2000 lb, 5‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

2000 lb, 5 on 4.25" – L44643/L44610 + L44643/L44610 dual bearing, fits 1" inner and 1" outer spindle.

Model 2:

2000 lb, 5 on 4.25" – LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1‑1/4" outer spindle.

Model 3:

2000 lb, 5 on 4.5" – L44643/L44610 + L44643/L44610 dual bearing, fits 1" inner and 1" outer spindle.

Model 4:

2000 lb, 5 on 4.5" – LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1‑1/4" outer spindle.

Model 5:

2000 lb, 5 on 4.75" – L44643/L44610 + L44643/L44610 dual bearing, fits 1" inner and 1" outer spindle.

Model 6:

2000 lb, 5 on 4.75" – LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1‑1/4" outer spindle.

—— —— —— —— ——

【Common Type 3】

2000 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

2000 lb, 6 on 5.5" – LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1‑1/4" outer spindle.

—— —— —— —— ——

【Common Type 4:】

2200 lb, 4‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

2200 lb, 4 on 4" – L44649/L44610 + L44649/L44610 dual bearing, fits 1‑1/16" inner and 1‑1/16" outer spindle.

Model 2:

2200 lb, 4 on 100 mm – L44649/L44610 + L44649/L44610 dual bearing, fits 1‑1/16" inner and 1‑1/16" outer spindle.

—— —— —— —— ——

【Common Type 5】

2200 lb, 5‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

2200 lb, 5 on 4.25" – L44649/L44610 + L44649/L44610 dual bearing, fits 1‑1/16" inner and 1‑1/16" outer spindle.

Model 2:

2200 lb, 5 on 4.5" – L44649/L44610 + L44649/L44610 dual bearing, fits 1‑1/16" inner and 1‑1/16" outer spindle.

Model 3:

2200 lb, 5 on 4.75" – L44649/L44610 + L44649/L44610 dual bearing, fits 1‑1/16" inner and 1‑1/16" outer spindle.

—— —— —— —— ——

【Common Type 6】

3500 lb, 4‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

3500 lb, 4 on 4" – LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1‑3/8" outer spindle.

Model 2:

3500 lb, 4 on 100 mm – LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1‑3/8" outer spindle.

—— —— —— —— ——

【Common Type 7】

3500 lb, 5‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

3500 lb, 5 on 4.25" – L44649/L44610 + L68149/L68111 dual bearing, fits 1‑1/16" inner and 1‑3/8" outer spindle.

Model 2:

3500 lb, 5 on 4.25" – LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1‑3/8" outer spindle.

Model 3:

3500 lb, 5 on 4.5" – L44649/L44610 + L68149/L68111 dual bearing, fits 1‑1/16" inner and 1‑3/8" outer spindle.

Model 4:

3500 lb, 5 on 4.5" – LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1‑3/8" outer spindle.

Model 5:

3500 lb, 5 on 4.75" – L44649/L44610 + L68149/L68111 dual bearing, fits 1‑1/16" inner and 1‑3/8" outer spindle.

Model 6:

3500 lb, 5 on 4.75" – LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1‑3/8" outer spindle.

—— —— —— —— ——

【Common Type 8】

3500 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

3500 lb, 6 on 5.5" – L44649/L44610 + L68149/L68111 dual bearing, fits 1‑1/16" inner and 1‑3/8" outer spindle.

Model 2:

3500 lb, 6 on 5.5" – LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1‑3/8" outer spindle.

—— —— —— —— ——

【Common Type 9】

6000 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

6000 lb, 6 on 5.5" – 15123/15245 + 25580/25520 dual bearing, fits 1‑1/4" inner and 1‑3/4" outer spindle.

—— —— —— —— ——

【Common Type 10】

7000 lb, 8‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. NOTE：Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

3. Factory Details Attached Below.

Model 1:

7000 lb, 8 on 6.5" – 14125A/14276 + 25580/25520 dual bearing, fits 1‑1/4" inner and 1‑3/4" outer spindle.

—— —— —— —— ——
