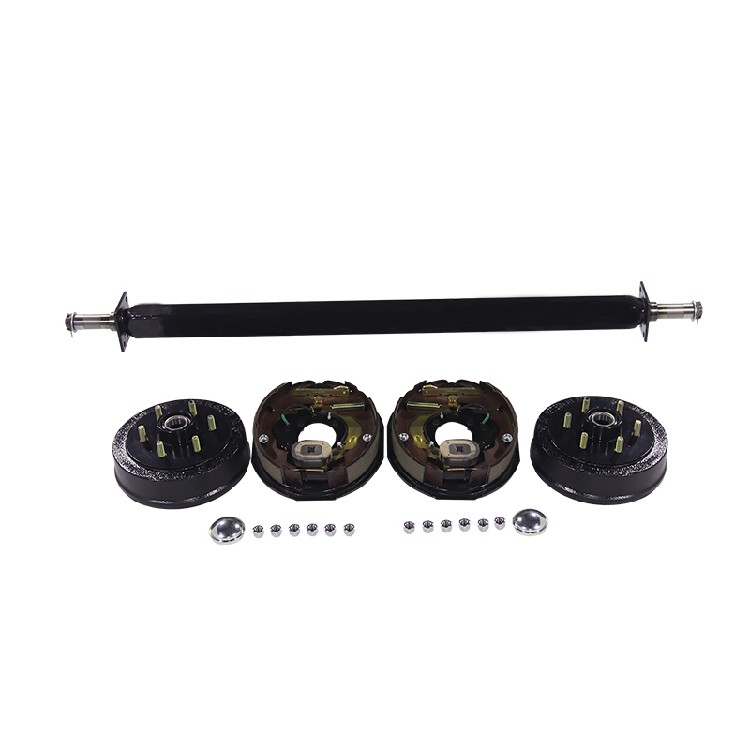

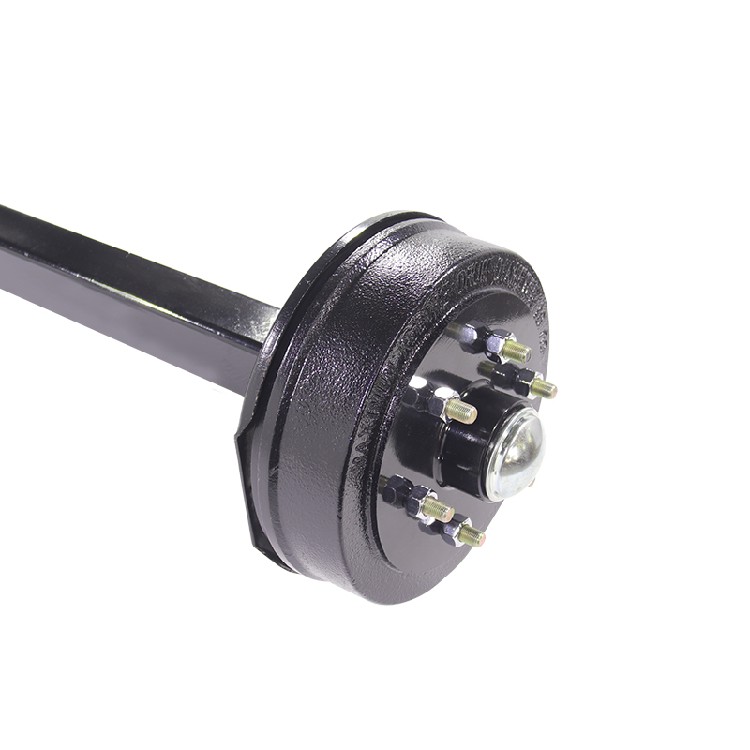

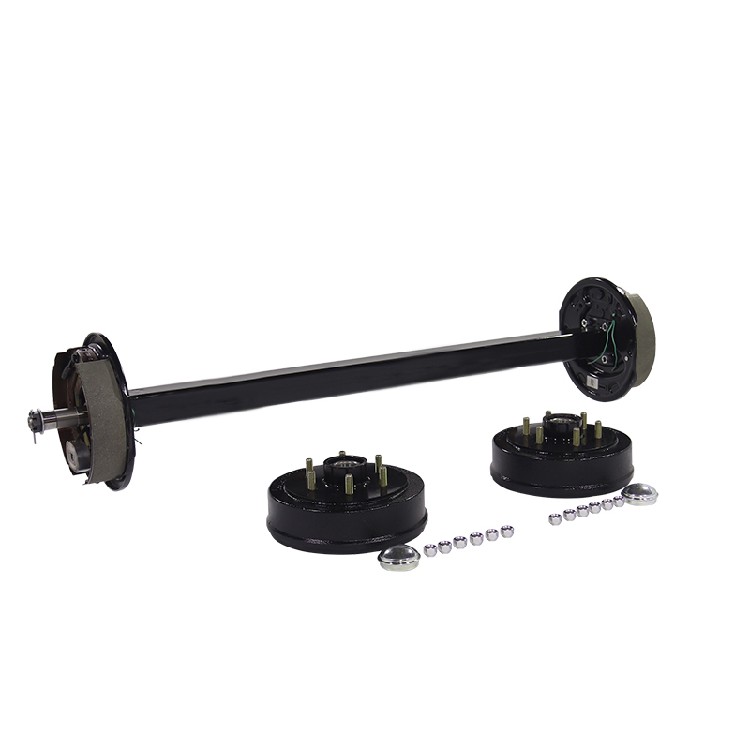

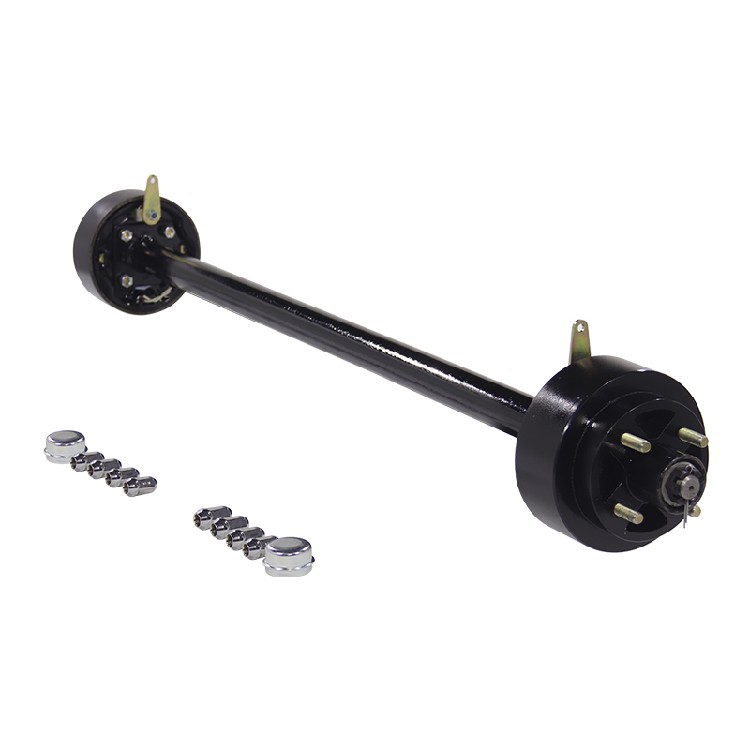

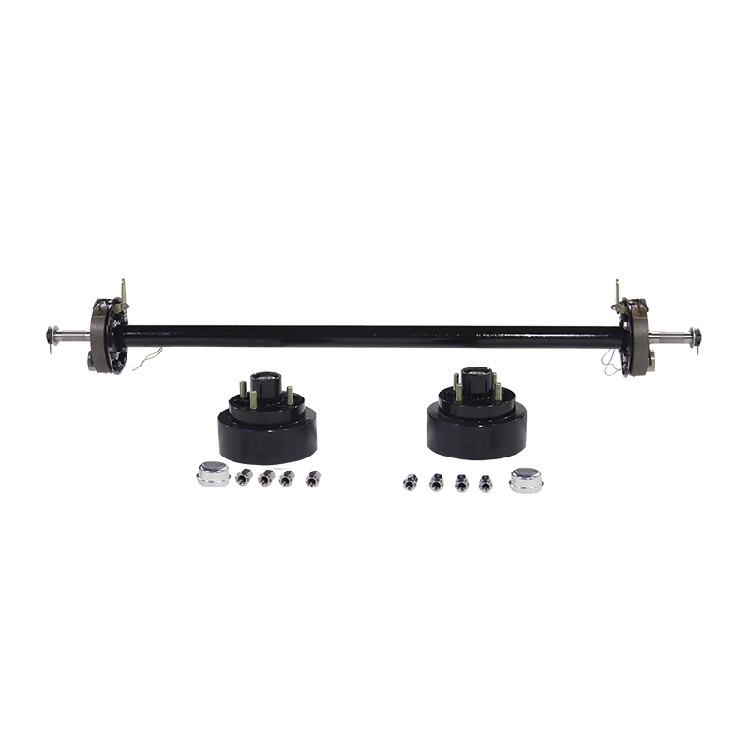

Trailer RV Specific Brake Drum Hub And Rear Axle Assembly | Electric Brake, Hydraulic Brake, Hand Brake | Shiao Trailer Chassis Manufacturing Factory

Product Name And Title

(1) Compatible Applications

Towable RV, Small Trailer / Light-duty Trailer, Food Trailer / Catering Trailer, Camping Trailer, Travel Trailer, Flatbed Trailer, Camper Trailer, Park Mdeol RV / Park Trailer, Boat Trailer, Shopping Trailer / Utility Trailer, Motorcycle Trailer, Farm Trailer / Agricultural Trailer

(2) Specific Product Name

Axle Assembly, Axle, Rear Axle, Straight Axle, Rear Axle, Through Axle / One-Piece Axle, Rubber Torsion Axle, Electric Brake, Hydraulic Brake, Parking Brake, Brake Drum, Brake Drum, Brake Axle, Disc Brake Axle, Drum Brake Axle

(3) Other Keywords

Shiao Trailer, Taizhou, Jiangsu; Chassis Wheel Hub Unit Assembly; Spindle / Hub End; Complete specifications in stock; professional factory customization available.

Product Selling Points

Product Highlights & Key Advantages:

1. Complete Specifications, Large Inventory In Stock, Direct Source Factory, Free Customization Available For All Model Parameters.

2. The Product Details List 8 Common Categories And 26 Models Of Brake Drum Hubs Along With Their Spindle And Axle Assemblies For Reference. In Addition, We Also Manufacture A Full Range Of Non-Brake Hubs, Spindle And Axle Assemblies, Brake Disc Rotors, Calipers, And Related Components.

3. Suitable For A Wide Variety Of Applications Including Towable RVs, Boat Trailers, Flatbed Trailers, Farm Trailers, Camper Trailers, And More.

4. Shiao Trailer Factory Based In China, With Eleven Years Of Industry Expertise, 24-Hour Customer Response Commitment, And A Fast 15-Day Lead Time For Delivery.

Product Specifications

(1) Brand (Trademark / Trade Name): Shiao Trailer

(2) Model (Specifications): Complete specifications in stock; professional factory customization available

(3) Origin: Jiangsu Province, China

(4) Manufacturing Method: Forging

(5) Material: Iron

(6) Drive Wheels: Driven by the towing vehicle (the trailer itself has no independent drive system)

(7) Hub Surface Finish: Baked paint

(8) Stock Availability: Yes

(9) Packaging: Iron frame pallets and individual neutral cardboard boxes

(10) Lead Time: 15 days

(11) Spindle Size (Bearing Inner Diameter): Complete specifications in stock; professional factory customization available

(12) Bolt Pattern (Number of Bolts - Diameter / PCD): Complete specifications in stock; professional factory customization available

(13) Load Capacity per Wheel: Complete specifications in stock; professional factory customization available

(14) Bearing Type: Complete specifications in stock; professional factory customization available

(15) Brake Drum Size: Complete specifications in stock; professional factory customization available

(16) Electric Brake - Operating Voltage: 12V DC, 3-4 Amperes

(17) Parking Brake - Cable Connection Type: Standard Φ10mm cable attachment hole

(18) Hydraulic Brake - Line Thread Specification: 3/8-24 UNF

(19) Spindle Diameter: Complete specifications in stock; professional factory customization available

(20) Spindle Length: Complete specifications in stock; professional factory customization available

(21) Spring Center Distance (Leaf Spring Center Distance): Complete specifications in stock; professional factory customization available

(22) Overall Axle Assembly Width: Complete specifications in stock; professional factory customization available

(23) Axle Tube Shape: Round/Square, Hollow/Solid, Black/White

(24) Axle Tube Inner Diameter: Complete specifications in stock; professional factory customization available

(25) Spindle Journal Diameter: Complete specifications in stock; professional factory customization available

(26) Compatible Suspension: Complete specifications in stock; professional factory customization available

8 Common Bolt Pattern Types and 26 Model Configurations

【Common Type 1】

2000 lb, 5‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

10"×2-1/4" Brake Drum - 2000 lb, 5 on 4.25" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle

Model 2:

10"×2-1/4" Brake Drum - 2000 lb, 5 on 4.5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle

Model 3:

10"×2-1/4" Brake Drum - 2000 lb, 5 on 4.75" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle

Model 4:

10"×2-1/4" Brake Drum - 2000 lb, 5 on 5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle

Model 5:

10"×2-1/4" Brake Drum - 2000 lb, 5 on 5.5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle

—— —— —— —— ——

【Common Type 2】

2000 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

10"×2-1/4" Brake Drum - 2000 lb, 6 on 5.5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle

—— —— —— —— ——

【Common Type 3】

2200 lb, 4‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

7" Brake Drum - 2200 lb, 4 on 4" - L44649/L44610 + L44649/L44610 dual bearing, fits 1-1/16" inner and 1-1/16" outer spindle

—— —— —— —— ——

【Common Type 4】

3500 lb, 5‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.25" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle

Model 2:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.25" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle

Model 3:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle

Model 4:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle

Model 5:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.5" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle

Model 6:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.75" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle

Model 7:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.75" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle

Model 8:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.75" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle

Model 9:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle

Model 10:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle

Model 11:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 5" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle

Model 12:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 5.5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle

Model 13:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 5.5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle

Model 14:

10"×2-1/4" Brake Drum - 3500 lb, 5 on 5.5" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle

—— —— —— —— ——

【Common Type 5】

3500 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

10"×2-1/4" Brake Drum - 3500 lb, 6 on 5.5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle

Model 2:

10"×2-1/4" Brake Drum - 3500 lb, 6 on 5.5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle

—— —— —— —— ——

【Common Type 6】

6000 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

12"×2" Brake Drum - 6000 lb, 6 on 5.5" - 15123/15245 + 25580/25520 dual bearing, fits 1-1/4" inner and 1-3/4" outer spindle

—— —— —— —— ——

【Common Type 7】

7000 lb, 6‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

12"×2" Brake Drum - 7000 lb, 6 on 5.5" - 25590/25520 + 25590/25520 dual bearing, fits 1-13/16" inner and 1-13/16" outer spindle

—— —— —— —— ——

【Common Type 8】

7000 lb, 8‑Hole

1. Full Range in Stock; Professional Factory Offers Customization.

2. Electric Brake Operating Voltage: 12V DC, 3-4A.

3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.

4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.

5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.

6. Factory Details Attached Below.

Model 1:

12"×2" Brake Drum - 7000 lb, 8 on 6.5" - 25590/25520 + 25590/25520 dual bearing, fits 1-13/16" inner and 1-13/16" outer spindle

—— —— —— —— ——
