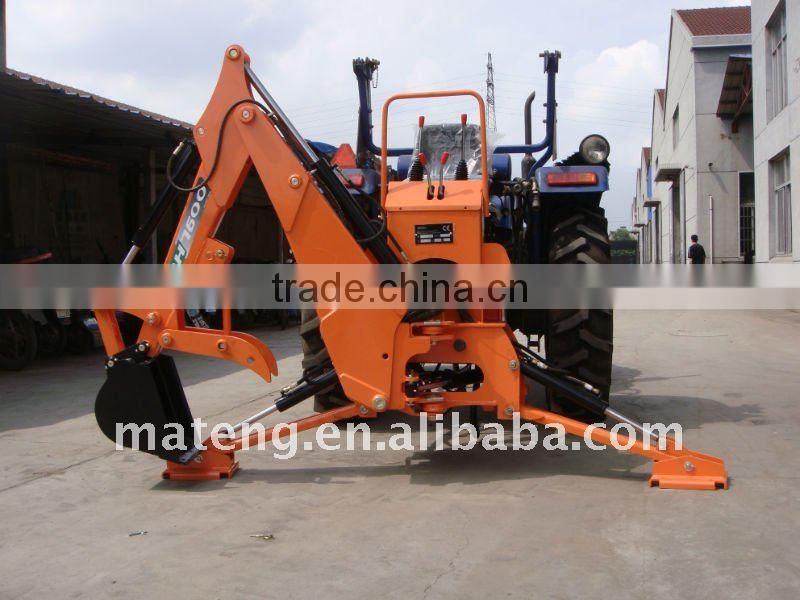

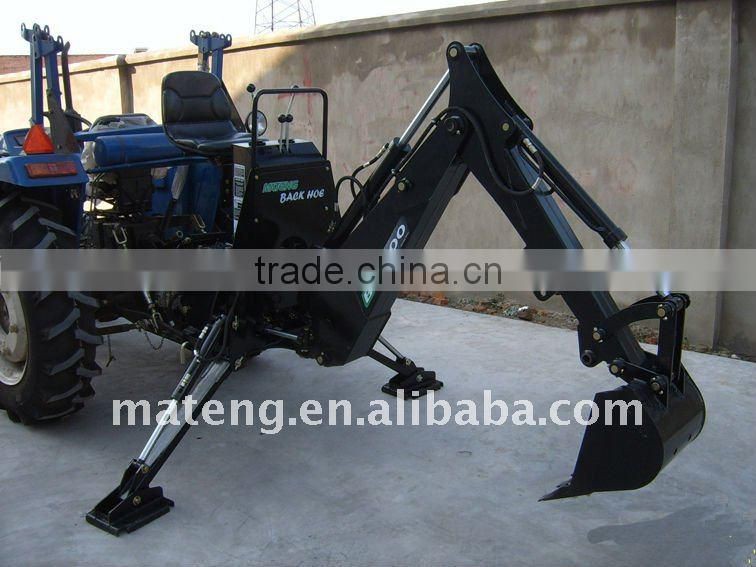

backhoe with CE

Model

BH6600

BH7600

 /BH8600

Maximum Digging Depth

7'0"

8'0"

9’0”

A. Digging Depth (two foot flat bottom)

6'6"

7'6"

8’6”

B. Swing Arc

180 °

180 °

180

C. Loading Height (bucket at 60 ° )

5'0"

5'10"

5’20”

D. Reach from Center Line of Swing Pivot

8'6"

9'6"

10’6”

E. Transport Height (maximum)

4'11"

5'9"

6’8”

F. Bucket Rotation

180 °

180 °

180

G. Loading Reach (bucket at 60 ° )

3'2"

3'7"

4’0”

H. Transport Overhang

3'5"

3'6"

3’7”

I. Undercut

2'4"

2'6"

2’8”

J. Stabilizer Spread, down position

6'6"

7'5"

8’5”

K. Stabilizer Spread, up position

3'11"

5'1"

6’0”

Bucket Cylinder Digging Force

2450 lbs

2840 lbs

3000lbs

Dipper stick Cylinder Digging Force

1250 lbs

2005 lbs

2500lbs

Shipping Weight (less bucket)

654 lbs

875 lbs

1100bls

Hydraulic Volume Requirements

3 to 4 GPM

4 to 5 GPM

5  to 6 GPM

Hydraulic Pressure Requirements

2000 psi

2000 psi

2000 psi

Recommended Tractor HP Requirements

18 - 35 HP

25 - 45 HP

35 - 65 HP

Specifications May Very Depending on Tractor Model and Subject to Change Without Notification.
Tractor Must Be Equipped with ROPS and Seat belt That will Provide Better Safety.
