Small capacity MY80 cotton ginning machine

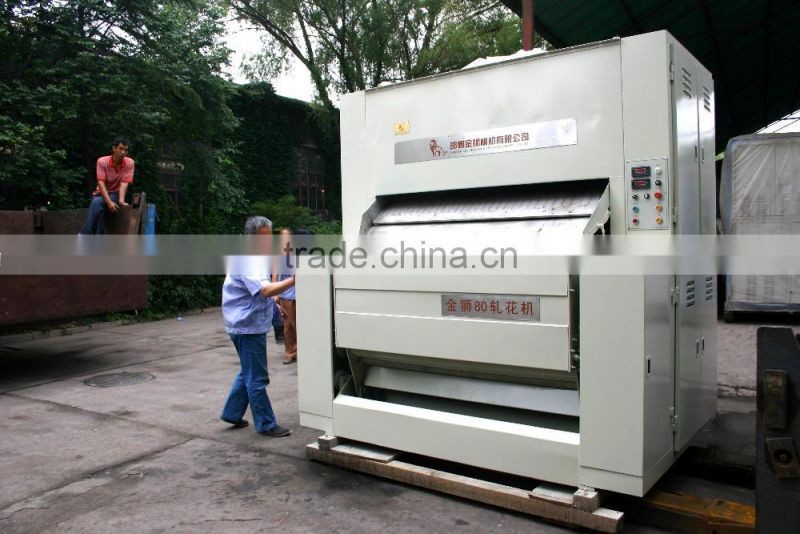

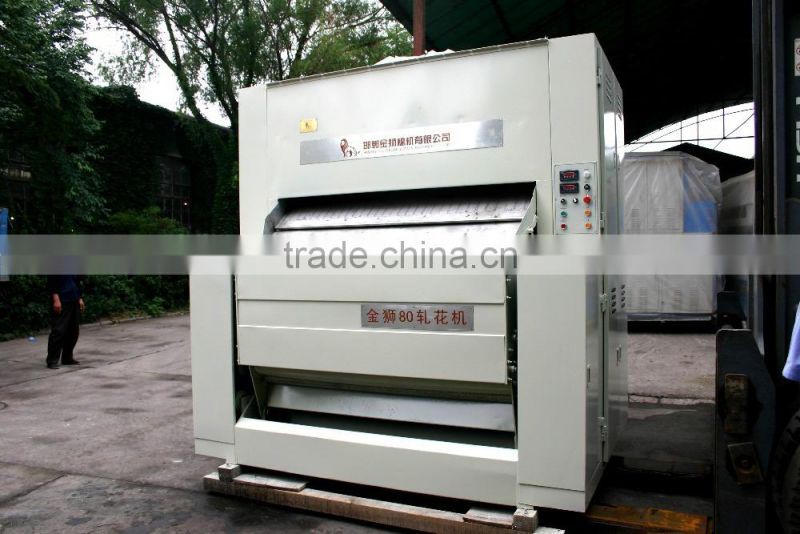

MY80-19.4 Saw Gin

Goldenlion MY80-19.4 saw gin is a brand-new design which is developed by Handan Goldenlion Cotton Machinery Co., Ltd. upon researching various market demands and domestic condition. The design guarantees a maximum keeping the cotton staple internal quality, maximum cleaning harmful impurity from lint, and to improve the ginning quality. The machine improved the main body structure, added automatic function. The machine has features of advanced technology, rational structure, attractive appearance high automation safe and reliable. It is an ideal saw gin for ginneries.

Applicability: Suitable for ginning cotton with staple length of 23 to 33mm, moisture content no more than 10% and pre-cleaned cotton.

Main features

1. Obtain a good lint quality. Unique roll box shape, maximizing guarantee original lint quality.
2. High automation. It has auto-feeder, feeding evenly. Auto-roll box handling to reduce labor intensity.
3. Solid structure, high reliability. Whole machine running smoothly, less vibration.

Main Specifications

Unit capacity (kg): 400-450

Feed motor (kW): 0.75
100kg lint power consumption (kW.h): ≤3.5

Roll box handling motor (kW): 0.55
Noise dB(A): ≤ 85

Overall dimension (L x W x H) mm: 2349x1634x2363
Saw motor (kW): 22

Weight (kg): 3500

Package

Sea worthy wooden case
