F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor

Update time:2022-03-02 22:30:17
Price:$ 50 - $ 80 / Piece
Min Order:1 Piece / Pieces Piece
  • T/T L/C D/P D/A MoneyGram Credit Card PayPal
  • Beijing
  • 960 Piece / Pieces per Month

Basic Info

Brand NameNaviproCar Makeall vehicleModel NumberF300
Place of OriginBeijing, ChinaSize10-1500mmTypeTemperature Sensor
Warranty1 Years

Product Description


Product Description

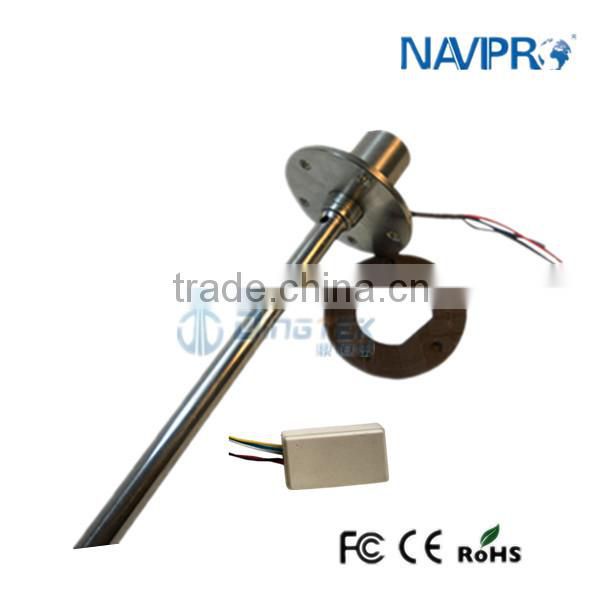

F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor

Product Description

Overview

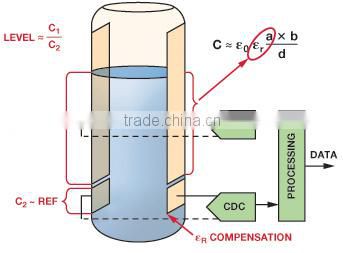

High resolution capacity fuel level sensor,Customer resize to adopt fuel tank depth.

  F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor

Features



Fuel level detection for truck and non-road vehicle,
COM port or Analog voltage output;
High resolution and internal filter for fluctuation;
Customer resize to adopt fuel tank depth.



Specification



Length10-1000mm
resolution1mm
pressure-0.1MPa~0.1MPa
ambient temperature-40~+70oC
sensor temperature-100~+150 oC
sensor diameter16mm
OutputAnalog :0-5VDC , or Digital: RS 232/485
VoltageDC 12~40V
explosion-proofEXia II C T6
mountingflange

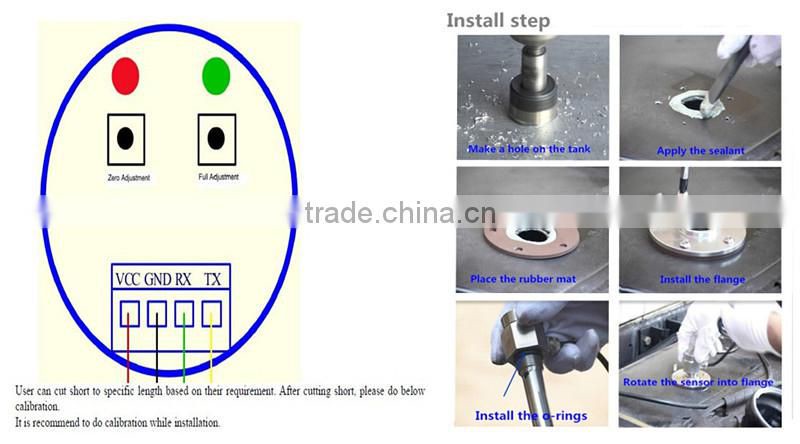

Connection Diagram



RS232 model
Red Line: 24V+,
Black Line: GND
Blue Line: RXD
Yellow Line: TXD



 F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor









0-5V analog model

Red Line: 24V+,
Black Line: GND
Blue Line: 0-5V output





 F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor



Packaging & Shipping



Our Delivery: DHL / UPS / FedEx / EMS





OF330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor



Our Services

 If you have any queation, please contact me.



Company Information

 Our Company and Team

  F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor







  F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor







Certifications



 F330 Hot Sale Each 5s Signal Output Resolution 1mm Capacitance Car Fuel Level Sensor

FAQ



1. Can I use it with gps tracker?

Yes, it support any gps tracker with 0-5V analogue input or RS232 input. If RS232 interface, the gps tracker need to do integration with our sensor protocol.

2. Which is the gps tracker list it support?

Any gps tracker with 0-5V analogue input and RS232 input. such as A300, VT310, MVT400, MVT600 and etc.

3. What is the resolution?

0.1mm. If multiple with section area, we can conclude the liter resolution, normally less than 1 liter for vehicle tank.

4. Can we measure the liter changing with it?

Yes, create one map between level and liter, then can draw liter changing.

5. Why is it expensive than other floating sensor?

Because capacitance is more stable and higher resolution than floating sensor. So do not compare with different type of sensor. Just compare with other capacitance sensor, our will be the most cost-effective one.

6. Do you have support for integration with our application?

Yes, we have EE and SW engineers team to support for you with integration of our product.

7. Is it safe for using with gasoline?

Sure, we have ExtdIIT certification.

8. Can we cut short to adopt our tank?

No, it does not support user cutting short. We have another model F330 support customer resizing.
