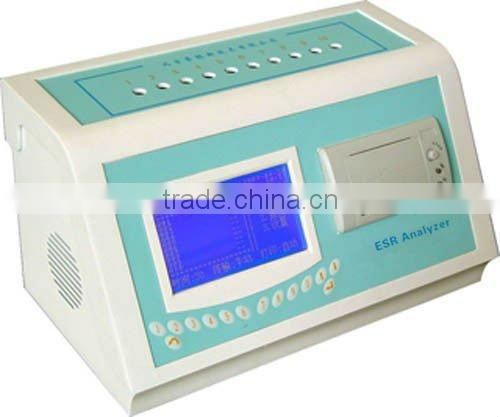

ESR Analyzer AJ-2068A with CE

Specifications

ESR Analyzer AJ-2068A

Erythrocyte Sedimentation Rate Analyzer

Usage

The machine is mainly used for detection of RBC erythrocyte sedimentation rate of clinical symptoms.

Feature

Method of inputting sample: Random sample position, testing at any moment;

Result Output: Printing No, westergren method result and full ESR curve, testing time and temperature; If the testing time is 60 minutes, Kats value can be calculated, displayed, printed automatically;

The device has the function to choose environment temperature compensating. If this function is valid, the test result under room temperature can be calibrated to 18° C by ESR calibrator.;

The device can save more than 150 result, including sample No., ESR value and dynamic curve;

The device has protection function when the power shuts down. The result will be saved automatically if the power shut down abruptly;

The device is equipped with thermal printer, can work on manual or auto mode;

Operation interface: Panel keyboard;

Communication interface: RS-232 serial port

Technical Parameter

Measure range: 0_140 mm/h(westergren method);

Testing pertinence: For westergren method result, the linear coefficient r≥ 0.98;

Testing repeatability: CV < 3%;

Testing accuracy of crate temperature: No more than ± 2.5° C between 15° C-30° C

Specifications

Number of test samples: 10 items at the same time

Max test speed: 20 samples/hour;

Suited ESR tube: 1.6ml ESR tube(vacuum or normal);

Sample volume: 1.6ml anticoagulant blood(blood 1.28ml + anticoagulant0.32ml), the height of the inputting tube 60mm;

Accuracy range of sample: 50mm-64mm;

Read resolution: ± 0.2mm(westergren method result ± 1mm);

Interval of reading: 1 minute;

Testing time: The test time is 30 minutes, equivalents to 1 hour westergren method; The test time is 60 minutes, equivalents to 2 hour westergren method;

Display: 128x240 LCD screen;

Power: 12V(SELV) by external power supply;

Dimension: 310 x 190 x 180 (mm);

Weight: 4.8kg;
