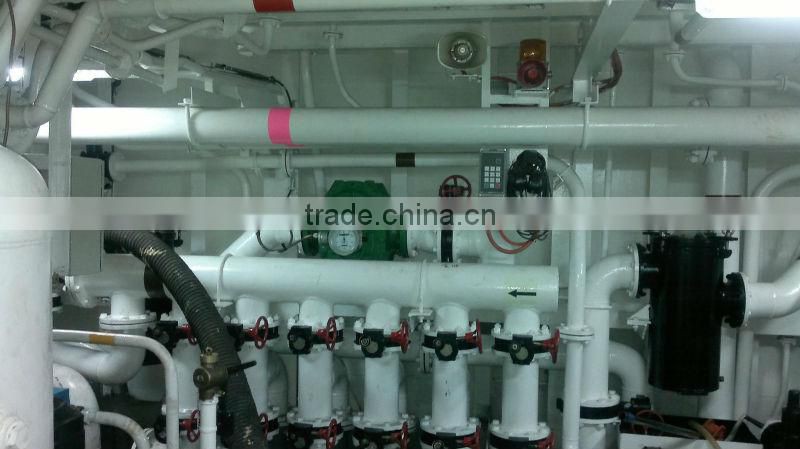

mechanical marine fuel oil flow meter

Specifications

1 Marine fuel oil flow meter

2 Meter kerosene,diesel,bitume,oil

3 Corrosion resistent flow meter

4 Digital display available

LC Series oval gear positive displacement liquid control flow meters , the main type of positive displacement flow meters, is used to meter fluid flow in the closed pipeline  .

Advantage

Good adaptation , easy installation and essentially independant of  temperature, pressure change .



Technical Data

Medium temperature:

LC-A/B/E(-20°c~+100°c)

In high temperature adjustment, with high temperature heat tube can reach 280 degrees

( 1)normal cast iron type(A), Steel type(E),Stainless steel type(B)

Type	A	E	B
Pressure(Mpa)	1.6	2.5,4.0,6.4	1.6
Temperature(°C)	-20~280	-20~280	-20~280
Viscosity(mpa.s)	2~200	2~200	2~200



3 Flow range(m³/h)

Type	A	A	E	E	B	B
Accuracy	0.5	0.2	0.5	0.2	0.5	0.2
Diameter(10mm)	0.08~0.4	0.1~0.4	0.08~0.4	0.1~0.4	0.1~0.5	0.1~0.5
Diameter(15mm)	0.25~1.5	0.3~1.5	0.25~1.5	0.3~1.5	0.3~1.5	0.3~1.5
Diameter(20mm)	0.5~3	0.6~3	0.5~3	0.6~3	0.6~3	0.6~3
Diameter(25mm)	1~6	1.2~6	1~6	1.2~6	1.2~6	1.2~6
Diameter(40mm)	2.5~15	3~15	2.5~15	3~15	3~15	3~15
Diameter(50mm)	4~24	4.8~24	4~24	4.8~24	4.8~24	4.8~24
Diameter(80mm)	10~60	12~60	10~60	12~60	12~60	12~60
Diameter(100mm)	16~100	20~100	16~100	20~100	20~100	20~100
Diameter(150mm)	32~190	38~190	32~190	38~190	38~190	38~190
Diameter(200mm)	34~340	68~340	34~340	68~340	68~340	68~340

 Mechancial display  marine fuel oil flow meter









Stainless steel marine fuel oil flow meter analog output type



Mechanical gauge oil flow meter with zero clearing



Mechanical gauge of oil flow instrument  with no zero clearing
