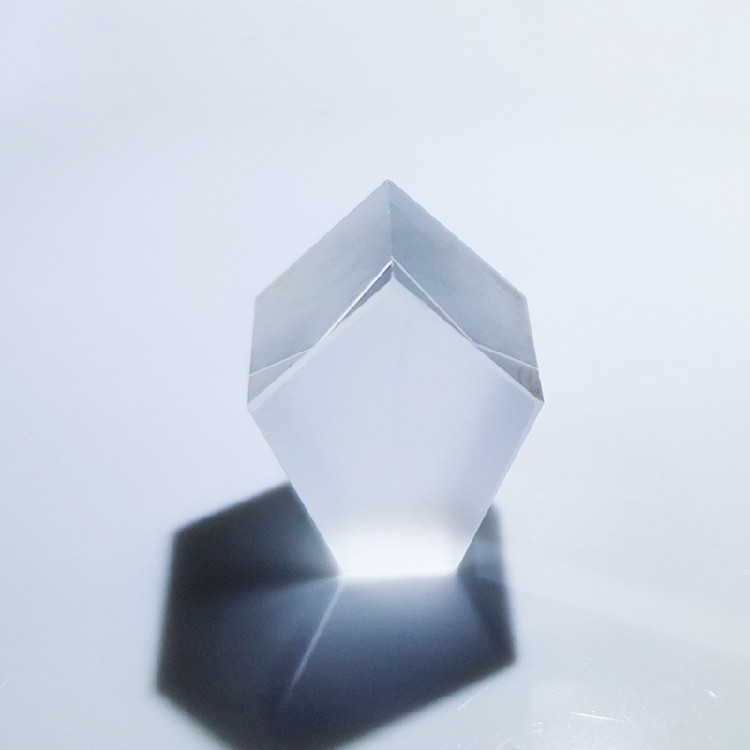

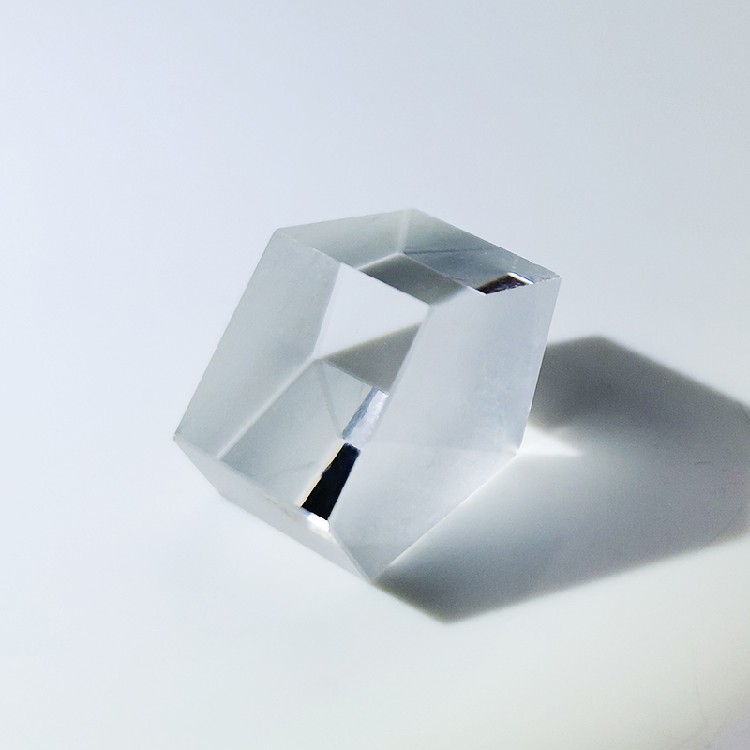

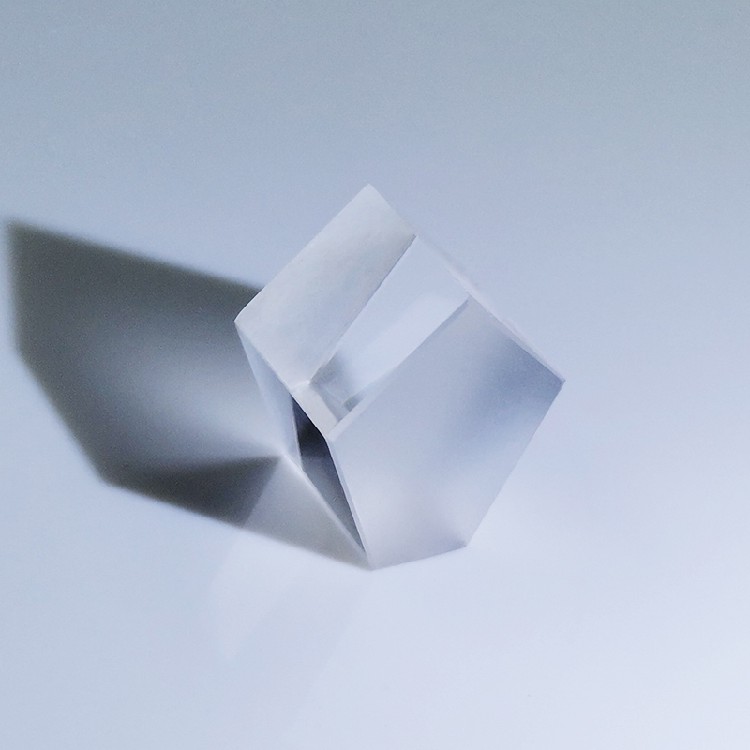

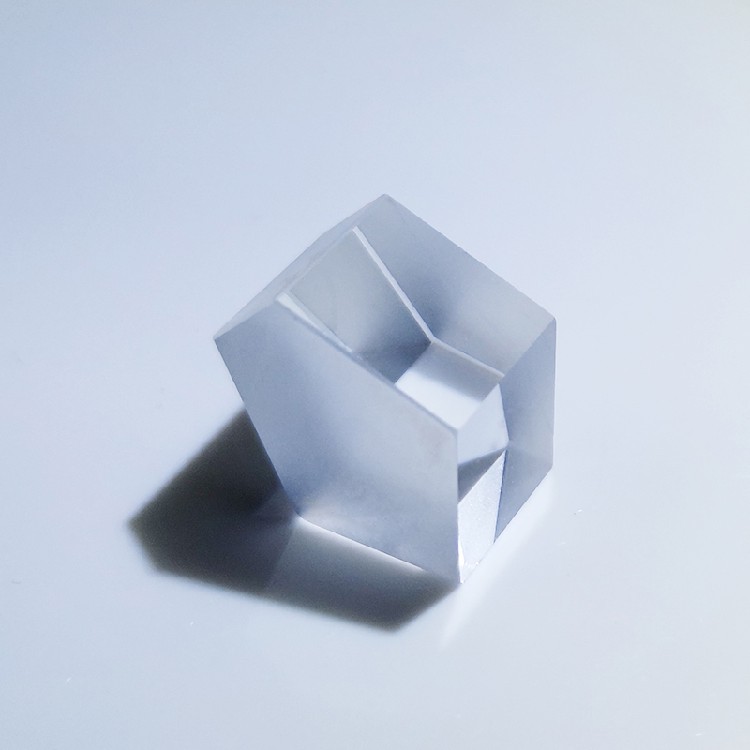

Unmounted Penta Prisms

pecifications

• Material: N-BK7, Grade A Fine Anneal
• Surface Flatness: λ/10 (Over the Clear Aperture)
• Surface Quality: 40-20 Scratch-Dig
• Clear Aperture: 70% of Entrance Face Dimensions
• Reflective Coating: Aluminized
• Dimensional Tolerance: ±0.1 mm
• Beam Deviation: 90° ± 1 arcmin

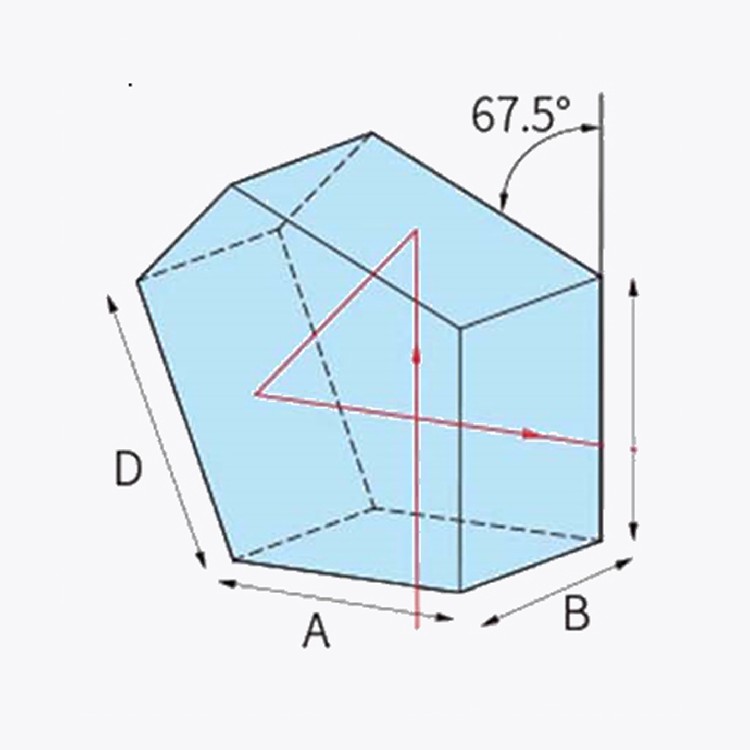

Penta Prisms are fabricated from N-BK7 glass, come with a reflective coating to ensure proper performance, and are available with four different clear apertures. A Penta Prism deviates an input beam or image through 90° without inverting or reversing the image. In addition, the 90° beam deviation is not dependent on a precise alignment of the prism with respect to the incoming beam or image.

10 mm Penta Prism, 7 mm x 7 mm Clear Aperture

20 mm Penta Prism, 14 mm x 14 mm Clear Aperture

40 mm Penta Prism, 28 mm x 28 mm Clear Aperture

60 mm Penta Prism, 42 mm x 42 mm Clear Aperture

Our capabilities include:

Custom dimensions, materials, coatings, and more

High-precision surface quality and flatness

Tight tolerances and complex geometries

For custom sizes or optional anti-reflection coatings, please contact Tech Sales.
