Trolley Type AGV-automated guided vehicle
Update time：2022-01-27 22:36:04
Share
Price:Negotiable
Min Order:1 Set / Sets
- T/T MoneyGram Credit Card
- Shenzhen
- 0 per Month
Basic Info
| Place of Origin | Guangdong, China | ||||
|---|---|---|---|---|---|
Product Description
Product Description
Specifications
self-own core technologhy, competetive price, reliable quality
One-Way Movement Trolley Type AGV can directly carry materials, which is easier and simpler than the traditional trolley. It reads the landmark information and makes site stop through magnetic stripe navigation. It is suitable for being used by electronics factory and auto parts factory.

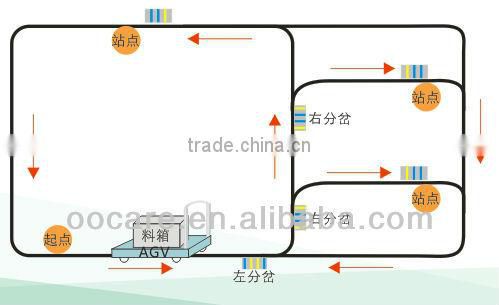

AGV Driving Route Map Case
Technical parameters
| Overall Dimension | L1000*W800*H900(mm) |
| Moving Way | Magnetic stripe navigation |
| Moving Directions | Going ahead, turning to the left and the right, bifurcating |
| Means of Communication | Wireless Local Area Network |
| Driving Mode | Differential driving |
| Driving Power | DC24V DC48V |
| Carrying Capacity | 300Kg ,500Kg (or custom made) |
| Model | Forklift Type AGV |
| Carrying Capacity | 30-45m/minute(or custom made) |
| Turning Radius | The minimum could be 800mm(the magnetic stripe path lays the radius) |
| Navigation Accuracy | ±10mm |
| Manner of Working | 24hours |
| Climbing Capacity | 3-5° |
| Stop Precision | ±10mm |
| Charge Methods | Manual Charging /Automatic Charging |
| Safety Induction Scope | ≤3m,adjustable,the urgent braking length is less than 20mm |
| Alarm Form | Acousto-optic Alarm |
| Storage Battery | Maintenance free charging, continuous discharge times are more than 300. |
| Safety Protection | The front obstacle detects the sensor + machinery anticollision mechanism double protection |
AGV Frame diagram
Application schematic diagram
