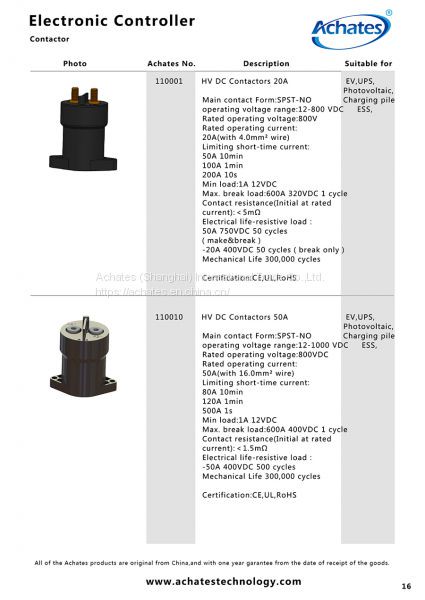

HV DC Contactors 20A

Main contact Form:SPST-NO

operating voltage range:12-800 VDC

Rated operating voltage:800V

Rated operating current:20A(with 4.0mm² wire)

Limiting short-time current:50A 10min,100A 1min,200A 10s

Min load:1A 12VDC

Max. break load:600A 320VDC 1 cycle

Contact resistance(Initial at rated current):＜5mΩ

Electrical life-resistive load ：50A 750VDC 50 cycles（make & break）；-20A 400VDC 50 cycles（break only）

Mechanical Life 300,000 cycles

Packaging Details:

Cardboard packaging inside, carton packaging outside ,anti-static

Shipping:

By Express: DHL,UPS,TNT ; By Air Cargo; By Sea

Payment:

PayPal, Western Union, T/T
