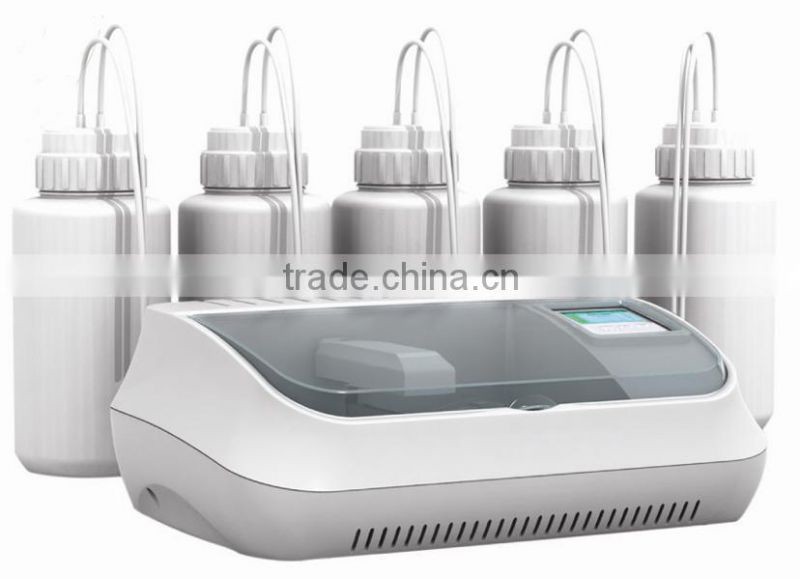

Microplate Washer / Elisa Washer AJ-1116 CE Prove

Specifications

1.Microplate Washer / Elisa Washer

2.Flexible and easy-of-use

3.easily programmable

4.low noise and slight vibration

Microplate Washer / Elisa Washer AJ-1116

Features

As a flexible automatic washing device, AJ-1116 is the indispensable instrument for the automated washing micro-plate either with 8 or 12 needles,in the Elisa test preparation process. During the washing the washing head is automatically transferred inside the instrument, thus protecting the operator against the possible high biological risk.

Control by a microprocessor, the instrument is easily programmable by the operator though keyboard. Suitable for U bottom, V bottom and plat bottoms, It is ideal choice for hospital, laboratory, and institutes

Flexible and easy-of-use

Advanced pump ensure accurate liquid dispense, low noise and slight vibration

Pre-washing tube system to avoid pipeline plugging

Two positions aspiration ensure minimal residual volume for plate bottom (Pic 3)

Flush well bottom directly to make completed washing effect(Pic 2)

Needles position is adjustable through keyboard to reach the best sipping point.(Pic 1)

Two wash mode: plane bottom or V bottom, compatibility of washing strips and full micro-plates

Self calibration and trouble alarm function



Pic1. Needle position adjustable  Pic2. Flush Well bottom   Pic3. Two position aspiration



Specification

Wash programs: Up to 30 option different in times and volume

Wash head: 8 needles and 12 needles optional

Suitable plate: 96-well, 48-wel and strips l(U,V, Plane bottom as pic1 indicated)

Wash cycles:  1-16 option

Soak time: Up to 990 seconds adjustable with 5s step interval

Model of wash:  From 1 to 12, row and rank, selectable

Dispensing volume: Adjustable from 50 to 900 ul by 50ul increment.

Residual Volume: Residual volume ≤2ul
