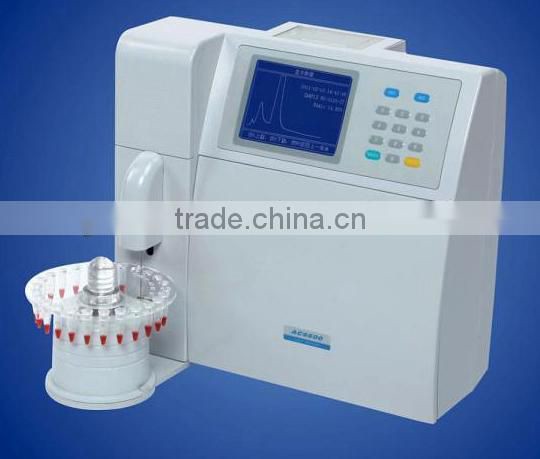

Automatic Glycated Hemoglobin HbA1c Analyzer AC6600

Basic Parameters

Testing Method

Low pressure ion exchange liquid chromatography

Testing Item

Glycated hemoglobin HbA1c

Testing Scope

3% ~ 18%

Testing Parameters

Precision (CV) ≤3%, Accuracy (V) ≤1.50%

Testing Time

 4 minutes (reporting), Full-processing 6 minutes (including cleaning column and recovery time)

Sample type

Venous blood (EDTA anticoagulation),Peripheral finger blood

Sample volume

5μl whole blood for each sample

Functional Parameters

Photometer

415nm LED Integral flow colorimeter

Sampling mode

Full-auto 25-position sample turntable (20 sample positions, 2 quality control positions, 1 emergency position, 1 cleaning position, 1 zero position)

Testing mode

Auto test for batch, single test for emergency

Calibration

Optional selection of 2 points or 4 points calibration, optional selection of manual or automation, Equipped with 2 groups of high and low level calibrators

Thermostatic control

Column and reagent thermostatic control: 25 ± 0.5°C

Reagent matching

One piece of column and reagent consumable/300 pieces of testing samples

Reagent allocation

 Each standard package includes A, B, C, D eluent, calibrator, hemolytic agent, pump tubing

Output Parameters

Display

320x240 LCD Graphic Display, displaying real-time testing curve

Printer

58mm Thermal printer, printing testing curve and report

Report Output

IFCC concentration value, NGSP area percentage, ADAG average glucose

Data storage

1000 test report (including testing curve)

Communication interface

RS232 communication interface, connecting to HIS/LIS system

Working Parameters

Power Supply

AC220V±22V  50Hz   65VA

Size

408mm×390mm×230mm

Weight

 8Kg

Working Environment

Temperature 12°C-30°C,Relative humidity ≤85%
