Commercial Polycarbonate Venlo Greenhouse

Update time：2022-03-08 22:18:47

Price:$ 1 - $ 10 / Acre

Min Order:1 Acre / Acres Acre

Basic Info

Brand Name	SLC	Cover Material	PC Sheet	Model Number	SLC-GV
Place of Origin	Beijing, China	Size	Large	Type	Multi-Span Agricultural Greenhouses

Venlo Greenhouse, PC sheet greenhouse

Suitable for Vegetable Crops /Floriculture Production

A versatile greenhouse designed for vegetable crops or floriculture

A single piece arch rolled into a gothic peak for superior condensation control

Gutter vents and other natural ventilation options for the most effective and efficient airflow possible

The most economical greenhouse for large growers

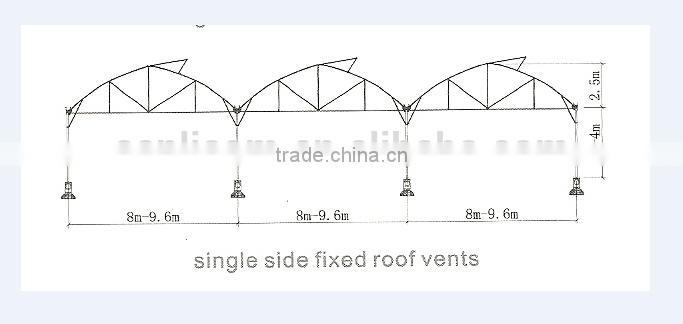

Structural Characteristics

Venlo structure,
Well sealed aluminum gutter,
Cover: float or tempered glass, fitted by special aluminum profile together with sealed band
Span: 8M, 9.6M, 12M,
Section: 4M, 4.5M, 5M
Wind load: 0.5 KN/M2, Snow load: 0.4KN/M2, Max Tonnage:150/M3/H
Ventilation: Single or double roof vents, controlled by the rack and pinion system
Shading, heating, cooling, irrigation, hydroponics, and climate control systems can be installed if requested

Specification	Data
Span Width	8m or 9.6m, other width are optional
Length	24m~60m, other length are available
Span Quantity	2~10, more for you choose
Wall Height	2.5m, 3.0m, 3.5m, 4.0m,4.5m,5.0m
Roof Height	Wall Height + 2.0m
Optional	Ventilation system Cooling system Shading System Irrigation System Heating System
