Universal Press & Pull Sleeve Set car repair tool

Update time：2022-03-12 10:01:40

Price:Negotiable

Min Order:100 Piece / Pieces

Basic Info

Brand Name	Bauin	Model Number	BA UPS	Place of Origin	Taiwan

Universal Press & Pull Sleeve Set car repair tool

Feature :

1. This tool set designed for extracting and drawing-in of bushes, bearings, seals

2. Fully universal applications for Car & LCV.

3. This Press & Pull Sleeve Set can be used with a workshop press.

4. Unique design U-Plot on each sleeve for mechanic easy see through working situation.

5. Special Designed For Mechanic Easy to use.

6. Supplied In Moulded Storage Case.

Contents:
Spindles X 4	Size	Nut / Bolt size		Length
	M10 X P1.5	Hex 27mm		450mm
	M12 X P1.75	Hex 27mm		450mm
	M14 X P2.0	Hex 27mm		450mm
	M16 X P2.0	Hex 27mm		450mm
Press Plate Discs X 2	Side A(mm)		Side B(mm)
	Φ36, Φ42, Φ48, Φ54, Φ60, Φ66, Φ72, Φ78		Φ20, Φ42, Φ48, Φ54, Φ60, Φ66, Φ72
Sleeves X 20 (A – Gold Plated) (B–Chrome Plated)	Sleeve A (11 pcs)		Sleeve B (9 pcs)
	D44 X d34, D46 X d36, D54 X d44, D56 X d46, D58 X d48, D66 X d56, D68 X d58, D70 X d60, D78 X d68, D80 X d70, D82 X d72.		D48 X d38, D50 X d40, D52 X d42, D60 X d50, D62 X d52, D64 X d54, D72 X d62, D74 X d64, D76 X d66,

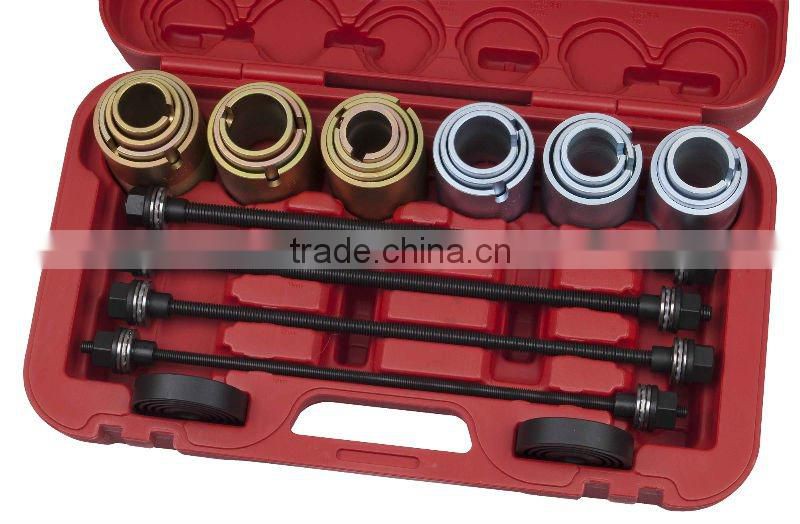

Example For Spindle & Sleeves application	Supplied In Moulded Storage Case

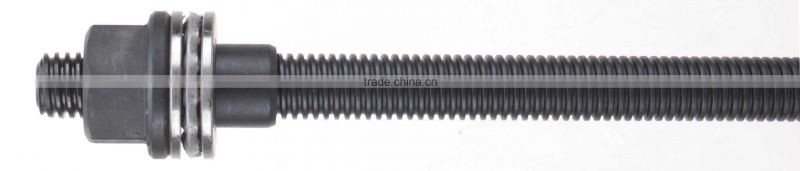

Nut & ThrustBearing onSpindle
