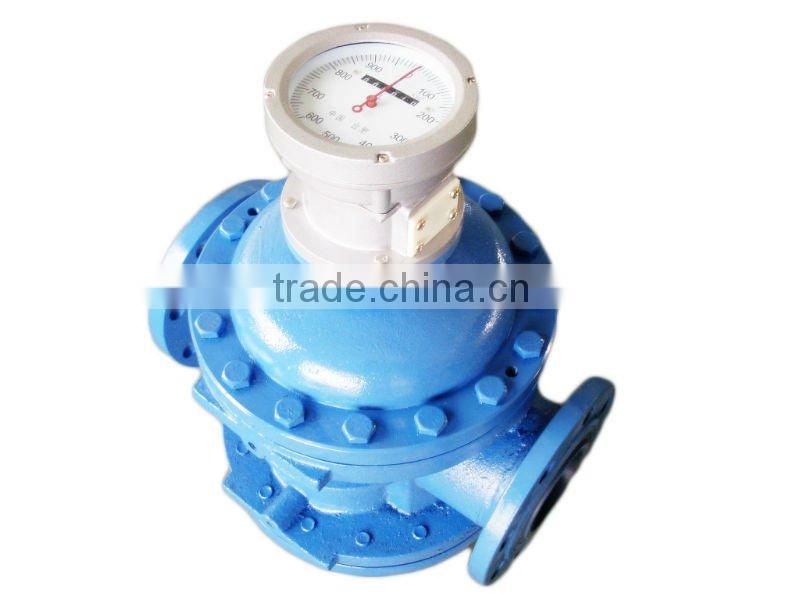

Mechanical rotor flow meter for engine fuel

Specifications

1, Apply to high viscosity oil

2, the counter can show accumulated and single flow

3, mainly used in the boiler,oilfield

LLT Series rotameter, the main type of positive displacement flow meters, is used to measure pressure in the pipeline closed under full pipe flow of the fluid flow. It has good adaptation and essentially unregulated measuring temperature, pressure change, and easy of installation.

2 Technical Data

( 1)normal cast iron type(A), Steel type(E),Stainless steel type(B)

Type	A	E	B
Pressure(Mpa)	1.6	2.5,4.0,6.4	1.6
Temperature(°c)	-20~100	-20~100	-20~100
Viscosity(mpa.s)	2~200	2~200	2~200



3 Flow range(m³/h)

Type	A	A	E	E	B	B
Accuracy	0.5	0.2	0.5	0.2	0.5	0.2
Diameter(10mm)	0.08~0.4	0.1~0.4	0.08~0.4	0.1~0.4	0.1~0.5	0.1~0.5
Diameter(15mm)	0.25~1.5	0.3~1.5	0.25~1.5	0.3~1.5	0.3~1.5	0.3~1.5
Diameter(20mm)	0.5~3	0.6~3	0.5~3	0.6~3	0.6~3	0.6~3
Diameter(25mm)	1~6	1.2~6	1~6	1.2~6	1.2~6	1.2~6
Diameter(40mm)	2.5~15	3~15	2.5~15	3~15	3~15	3~15
Diameter(50mm)	4~24	4.8~24	4~24	4.8~24	4.8~24	4.8~24
Diameter(80mm)	10~60	12~60	10~60	12~60	12~60	12~60
Diameter(100mm)	16~100	20~100	16~100	20~100	20~100	20~100
Diameter(150mm)	32~190	38~190	32~190	38~190	38~190	38~190
Diameter(200mm)	34~340	68~340	34~340	68~340	68~340	68~340
