Shanghai CX Electronic Technology Co. , Ltd.

Main products: High Definition- Power Line Communication , Power Line Communication,PLC Modem,Power Line Carrier,Carrier module,Filter

High Definition-Power Line Communication KS700M4P

Update time：2024-08-08 06:59:25

Price:$ 243.14 - $ 243.14 / piece

Min Order:2 piece

Basic Info

Certification	CE, ISO	Model No.	KS700M4P	Standard agreement	TCP/IP. UDp . Profinet . Home plug . ModbusTCP EEE 802.3. IEEE 802.3U. IEEE 802.3ab. EEE 1905.1. IEEE 1900. IEEE 1901etc
Type	Wired	Usage	Data Transmission

Products Features:

●Wider operating voltage range, support DC12-36V power supply.

●The power supply port and PLC channel port adopt the fool-proofing design.

●Enhanced high voltage isolation protection, stronger anti-interference.
●Improved surge protection, higher reliability.

●It is suitable for power line carrier communication below 1200 V. The power line can be AC, DC and uncharged.

Technical data:

Classification	Technical indicators
Power supply	DC 12-36V
PLC Signal port	Voltage 0-1200V any two core cable，power line，slip touch cord，slip ring cable etc
Modulation type	OFDM modulation type
Carrier frequency	2～28 MHz
Ethernet bandwidth	10M/100Mbps self-adaption
Transmission distance	Maximum transmission distance：Point-to-point 500 meter class 10 relay 3-5kilometre
RS485	Support Modbus RTU protocol, baud rate adjustable from 1200~115200bps.
Data delay	Within 10ms
Packet loss probability	Less than 0.1‰
Overall power consumption	≤3W
Standard agreement	TCP/IP，UDP，Profinet，Home Plug，Modbus-TCP，IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1，IEEE 1900，IEEE 1901etc
Way of encryption	AES-128bit
Multicast	Support IGMP multicast protocols,The maximum number of nodes is 128
Exterior dimensions	Size：11012520mm(No enclosure size)（LWH）Weight：350gInstall：Earhook
Environmental requirement	Operating temperature：-40℃～85℃Operating humidity：20%-95%（No condensation）Storage temperature：-40℃～85℃
Working time	Industrial grade, supports 7*24 hours all-weather work

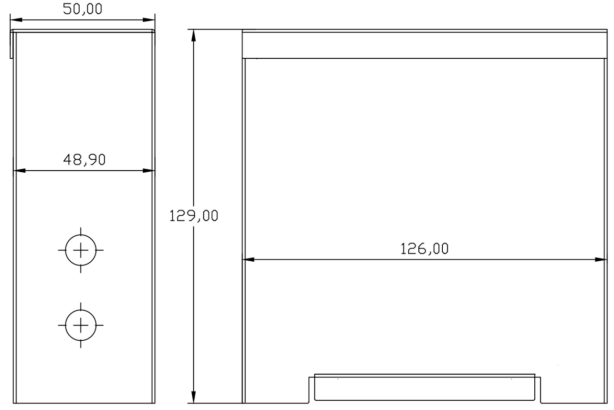

Exterior dimensions:

The PLC’s length, width and height are：129*126*50mm(no terminals included)，

TS35 guide rail mounting method.

Applications:

It has been mainly used in power carrier communication scenarios, such as mine communication system,

oilfield collection platform,substation, photovoltaic new energy and so on.
