Flat Saddled Pull Type AGV

Specifications

With self-own leading technology, patented, competetive price, reliable quality

Flat Saddled Pull Type AGV, one-way operation, with several sites selection function; it loads the material rest on the vehicle body, which realizes the easy handling of commodity. The double safety protection design, when several AGVs are used in cooperation, they can be constituted into an assembly line and form flexible production system instead of stream-lined line. This vehicle is mostly used in automobiles or other heavy machine assembling.

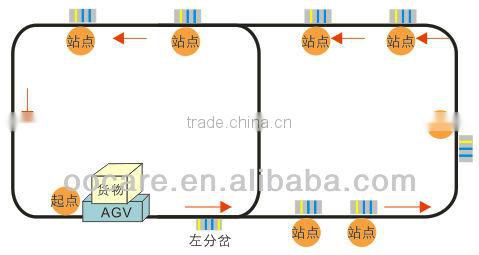

AGV Driving Route Map Case











Technical parameters





Overall Dimension	L1200*W600*H300(mm)
Moving Way	Magnetic stripe navigation
Moving Directions	Going ahead, turning to the left and the right, bifurcating
Means of Communication	Wireless Local Area Network
Driving Mode	Differential driving
Driving Power	DC24V  DC48V
Carrying Capacity	300Kg ,500Kg,750kg,1000kg  (or custom made)
Model	Flat Saddled Pull Type AGV
Carrying Capacity	30-45m/minute(or custom made)
Turning Radius	The minimum could be 800mm(the magnetic stripe path lays the radius)
Navigation Accuracy	±10mm
Manner of Working	24hours
Climbing Capacity	3-5°
Stop Precision	±10mm
Charge Methods	Manual Charging /Automatic Charging
Safety Induction Scope	≤3m,adjustable,the urgent braking length is less than 20mm
Alarm Form	Acousto-optic Alarm
Storage Battery	Maintenance free charging, continuous discharge times are more than 300.
Safety Protection	The front obstacle detects the sensor + machinery anticollision mechanism double protection
Designed Life	More than 10 years









AGV Frame diagram







Application schematic diagram
