Two-Way Lurking AGV-automated guided vehicle, patent pending

Specifications

powerful system integration and the automatization logistics solution ability for AGV



Two-Way Lurking AGV is applied in limited space. Single channel driving, the AGV lurks  under the tooling car, uses the motor-driven lift rod hanger to hook and drag the  trolley. It reads the landmark instruct through magnetic strip navigation. It  separates with the trolley automatically after reaching the designated spot. Then it  hides under the empty trolley and drags it away, doing alternating motion.







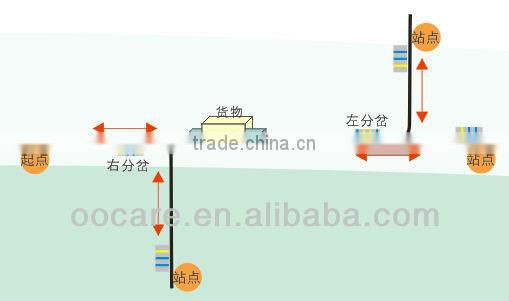

AGV Driving Route Map Case







Technical parameters



Overall Dimension	L2250*W410*H280(mm)
Moving Way	Magnetic stripe navigation
Moving Directions	Going ahead, back ,turning to the left and the right, bifurcating
Means of Communication	Wireless Local Area Network
Driving Mode	Differential driving
Driving Power	DC24V ,DC48V
Carrying Capacity	300Kg ,500Kg,750kg,1000kg (or custom made)
Model	Two-Way Lurking AGV
Carrying Capacity	30-45m/minute(or custom made)
Turning Radius	The minimum could be 800mm(the magnetic stripe path lays the radius)
Navigation Accuracy	±10mm
Manner of Working	24hours
Climbing Capacity	3-5°
Stop Precision	±10mm
Charge Methods	Manual Charging /Automatic Charging
Safety Induction Scope	≤3m,adjustable,the urgent braking length is less than 20mm
Alarm Form	Acousto-optic Alarm
Storage Battery	Maintenance free charging, continuous discharge times are more than 300.
Safety Protection	The front obstacle detects the sensor + machinery anticollision mechanism double protection
Designed Life	More than 10 years



AGV Frame diagram









Application schematic diagram
