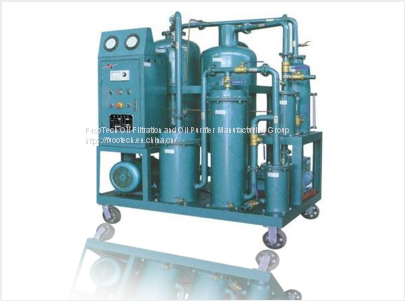

Series ZYB Multi-Function Transformer Oil Purifier Machine

Update time：2022-02-09 06:34:38
Price:$ 1 - $ 2 / Unit
Min Order:1 Unit / Units Unit
  • 15 days
  • T/T L/C Other
  • Shanghai, Guangzhou, any other ports in China
  • 1000 Unit / Units per Month

Basic Info

After-sales Service ProvidedEngineers available to service machinery overseasCertificationCE, ISO, WSFPlace of OriginChina
UsageLubricant Oil

Product Description


Product Description




 Series ZYB Multi-function Transformer Oil Purifier is special for purifying and regenerating the old or unqualified or seriously deteriorated insulating oils when power transformers below 220 kV.
  The Series ZYB Oil Purifiersystem not only provides regular oil purification such as degassing, dehydration and particles removal but also can remove polar material, acidity, sludge, hydrocarbons, other soluble oil decay products and discoloration.
  This is accomplished by the use of high vacuum degasification technology, special oil regeneration system application and particulate filters combined with our special brand of earth.  After treating, the oil can be reused as new so as to protect the electrical equipments working safely and normally.
  Meanwhile, this machine can be as a dryer and oiling machine for drying the electrical apparatus, and filling the insulating oil into the transformer under the vacuum situation. So it is very suitable for electrical apparatus manufacture factory, power station, power supply department, transformer in railroad station and other departments.
  Oil Result after Filtration


Moisture (Water Content)
≤ 5 PPM
Gas Content
≤0.1% (Vol)
Impurities Degree (Filtration precision)
≤ 3 micron (no free carbon)
Breakdown Voltage (Dielectric)
≥65 ~ 70 KV
Flash Point
≥135℃
Acid Value
≤0.04 mg KOH/g
PH value
≥5.5
Cleanliness
≤NAS 1638 Grade 6


The features of oil purifier
 Duplex 3D stereo-evaporation, eliminating the liquid water quickly
 UK Gtechnology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
 High precision and multi-stage filtration process, remove various size of particles and impurities.
 Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon from the oil effectively. It can make the seriously deteriorated oil reach to the normal index, like anti-oxides, acid- alkali, water-solubility
 Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
 This machine can be operated with all the systems in it, also can be operated with partial systems in it optionally, it’s very popular because of its high speed filtering, high efficient filtering, high quality, safe operation, etc…
 The performance and lifetime of insulating oil will be improved and extended awfully after purification and regeneration.
 This machine can be as a dryer and oiling machine for drying the electrical apparatus, and injecting the insulation oil into the transformer under the vacuum situation. All functions in the machine can run at the same time. Also they can be used separately.
  Operation is security and reliable.
 Low maintenance time and cost

Parameters
Unit
ZYB-10
ZYB-20
ZYB-30
ZYB-50
ZYB-100
ZYB-150
ZYB-200
Flow Rate
L/hr
600
1200
1800
3000
6000
9000
12000
Vacuum degree
Mpa
–0.08 ～ –0.098
Working pressure
Mpa
≤0.4
≤0.5
Temperature   degree
℃
20 ~ 80
Power   Supply

380V, 50 Hz, 3 Phase (or as per requirement)
Working   noise
dB(A)
≤50 ~ 80
Electric heating power
KW
12
15
18
30
60
90
120
Total Power
KW
14
18
21
35
67
102
135
Inlet   (outlet) caliber
mm
Ø25
Ø25
Ø25
Ø32
Ø42
Ø50
Ø50
Dimension
 (L × W × H)
mm
1400 × 900 × 1500
1500 × 900 × 1550
1600 × 950 × 1650
1650 × 950 × 1700
1650 × 1000 × 1800
1700×1050× 1850
1800×1100× 1900
Weight
Kg
380
400
450
600
800
850
900
Note:    1. The dimension and weight will be changed with changing of technical specs.
             2. All the specs can be customized according to client's requirements.

    For more info, pls don't hesitate to contact us.
