FuooTech Oil Filtration and Oil Purifier Manufacturing Group

Main products: Transformer Oil Purifier ,Transformer Oil Filtration Machine ,Oil Tester ,Dry Air Generator ,Transformer Evacuation System ,Vacuum Pump Set ,Electrical Testing Equipment ,Oil Recycling System ,Lube Oil Purifiers ,Oil Distillation System ,Portable Oil Filling Machine ,Waste Oil Refinery Plant

Home/Products/Series ZYA Fully Automatic Single-stage Vacuum Transformer Oil Purifier/

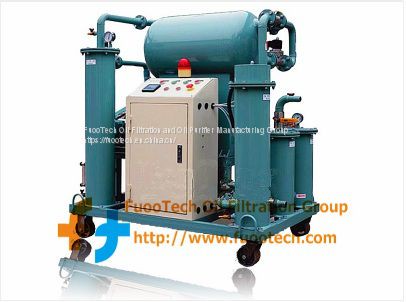

Series ZYA Fully Automatic Single-stage Vacuum Transformer Oil Purifier

Update time：2022-02-09 06:35:00
Price:$ 1 - $ 2 / Unit
Min Order:1 Unit / Units Unit
  • 15 days
  • T/T L/C Other
  • Shanghai, Guangzhou, any other ports in China
  • 1000 Unit / Units per Month

Basic Info

After-sales Service ProvidedEngineers available to service machinery overseasCertificationCE, ISO, WSFPlace of OriginChina
UsageLubricant Oil

Product Description


Product Description




ZYA Series Transformer Oil Purifier, equipped with and controlled by PLC system, which can be operated fully automatically. Operator just monitor its operation at side, operation status will be shown on the PLC touch screen. Meanwhile, one set of oil dielectric strength tester is provided along with ZYA Series to test BDV value at any time if necessary.
ZYA Series Oil Purifier effectively removes liquid water, trace water, gas, and particles from oil quickly, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, vacuum oiling, and vacuum pumping.
ZYA Series fully automatic single-stage vacuum transformer oil purifier is developed from ZY Series, mainly designed for using at the power station, industrial and mining enterprises to purify the unqualified or new transformer oil when power transformer below 110 kV, mutual inductor oil, switch oil, etc
 Oil Result after Filtration


Moisture (Water Content)
≤ 5 PPM
Gas Content
≤0.1% (Vol)
Impurities Degree (Filtration precision)
≤ 5 micron (no free carbon)
Breakdown Voltage (Dielectric)
≥65 ~ 70 KV
Flash Point
≥130℃
Cleanliness
≤NAS 1638 Grade 6


 The features of oil purifier

  1. Fully automatic operation controlled by PLC system, more easily and conveniently.

  2. Duplex-Stereo 3D film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

  3. Multi-stage precision filtration system, stainless steel filters’ filtration combined with molecular adsorption technologies, remove different sizes of impurities and particles thoroughly.

  4. Efficient carbon infrared electric heating system, heating uniformity, less power consumption, safe, and reliable.

  5. Double-infrared liquid level controlling system and pressure protective system ensure the machine operation easy and safely.

  6. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

  7. Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor, monitoring and controlling oil’s actual heating condition and temperature.

  8. can works as vacuum oil filling machine, vacuum drying system and vacuum pumping system.

  9. Small volume, light weight, easily movable, low maintenance cost and time.
