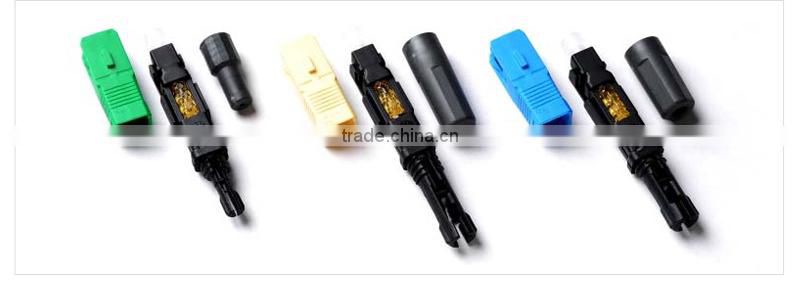

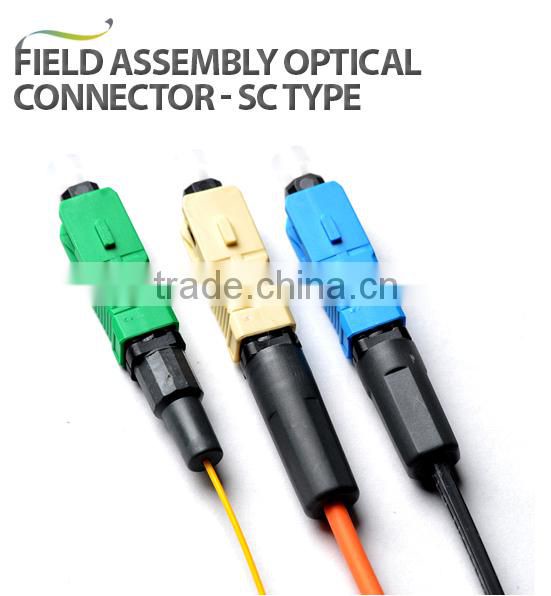

Field Assembly Optical Connector - SC type

KOC, based in the South Korea, is a globally recognized manufacturer of fiber optic products and specializes in integrated fiber optics solutions and service. We have been supplying a high level of the quality and cost-effective fiber optic products over the world, delivering our best effort to customer’s requirements since 1997. We have possessed cutting edge manufacturing facilities, world-class technologies and a strong R&D capability. KOC will do its best to be a pioneer of the future technology and to remain continuously dedicated to the improvement of all its products and services.









Field Assembly Optical Connector - SC type

Field Assembly Optical Connector - SC type


Sold in a set for 10 connectors
Random assorted colors


Item
- Field Installable Connector
- Fast Installable Optical Connector
- Pre-polished Optical Connector
- Quick Assembly Connector
Application
- Fiber Optic Telecommunication
- Fiber Distribution Frame
- FTTH Outlets
- Optical Cable Interconnection
- Cable Television
Features
- Quick and easy fiber termination
- Available to re-use
- High success rate of connection
- Superior optical characteristic value
- Simple assembly process
- No failure after openning
Assembling Tools
- Cleaver
- Scissors
- Gauze with Alcohol
- Stripper





Type
Sold in a set for 10 connectors
Random assorted colors

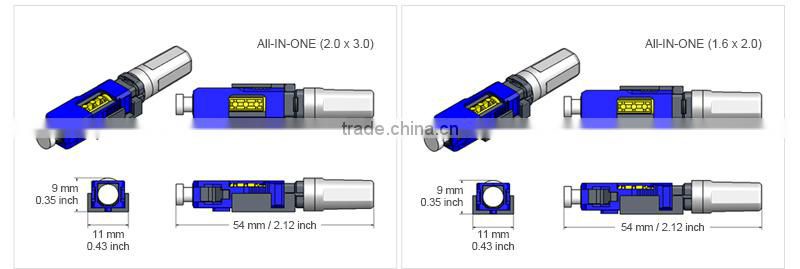

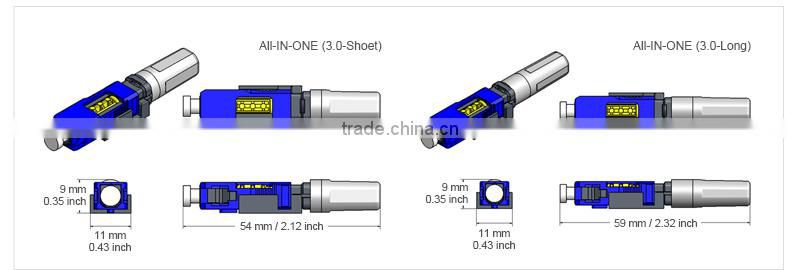

- Type 1 : 3.0mm (Round) type x 10 ea



Field Assembly Optical Connector - SC type



- Type 2 : 2.0mm X 3.0mm (Flat) type x 10 ea

- Type 3 : 1.6mm X 2.0mm (Flat) type x 10 ea



Field Assembly Optical Connector - SC type



- Type 4 : 2.0mm (Round) type x 10 ea

- Type 5 : 250μm&900μm (Round) type x 10 ea



Field Assembly Optical Connector - SC type







Field Assembly Optical Connector - SC type

Sold in a set for 10 connectors
Random assorted colors

An SC type FAOC is the most widely used fiber optic connector in FTTx that does not need epoxy or polishing. It enables fast and on-site installation of 250μm, 900μm, 3.0mm and 1.6mm x 2.0mm, 2.0mm x 3.0mm cable type connectors even when the user has no access to power. Two or three pieces of the preassembled and factory terminated connectors can be installed within 2 minutes using simple tools and can be recycled several times. It accommodates a reliable and durable optical network especially suitable for advanced fiber optic systems requiring exceptional stability and low loss. KOC FAOC has been recognized as a "Korean World-class Product" by the Ministry of Knowledge Economy.

Connector type

V-groove type
Fiber type

- SM : Standard Single Mode Fiber type
- MM : Multi Mode 50/125 & 62.5/125 Micron fiber type (OM1, OM2, OM3, OM4)

Ferrule Polishing type
- PC type : Physical Contact type
- APC type : Angled Physical Contact type
Connector type for using cable type

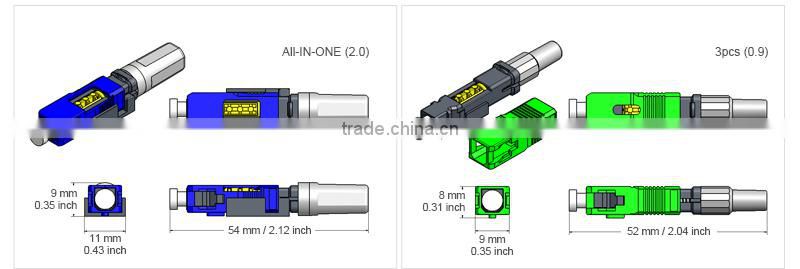

- 3.0mm (Round) type : All-In-One [2pcs parts]
- 2.0mm (Round) type : All-In-One [2pcs parts]
- 2.0mm X 3.0mm (Flat) type : All-In-One [2pcs parts]
- 1.6mm X 2.0mm (Flat) type : All-In-One [2pcs parts]

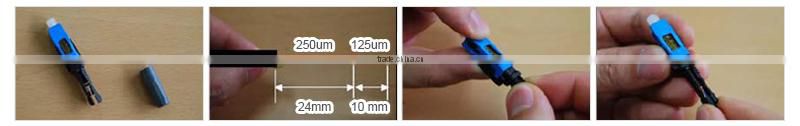

- 250μm&900μm (Round) type [3pcs parts] → with assembling jig tool & 900μm fit tube

Product Specifications
ItemSpecification
StandardTIA / EIA 604-3 [SC]
Insertion LossTyp. 0.3dB / Max. 0.5dB
Return LossTyp. 50dB / Max. 55dB [PC], Typ.55dB / Max. 60dB [APC]
Endurance500 times reconnection / ≤ 0.3dB
Tension[3.0mm, 1.6mm X 2.0mm, 2.0mm X 3.0mm] 3.0kg / ≤ 0.2dB change
[250μm&900μm] 0.75kg / ≤ 0.2dB change
Temperature Change21 times / -40ºC ~ +75ºC / ≤ 0.3dB change

End Face Geometry [Based on GR-326]PC typeAPC type
Ferrule Endface Radius (mm)7~255~12
Fiber Undercut (nm)Less than 100Less than 100
Fiber Protrusion (nm)Less than 100Less than 100
Apex Offset (um)Less than 50Less than 50
* Interferometer measuring equipment : CC6000 / Norland, ACCIS NC-3000 / Norland









Assembling Manual
- 3.0mm (Round) type / 2.0mm (Round) type

Field Assembly Optical Connector - SC type

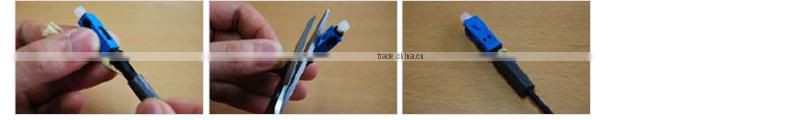

1. Check the parts, insert boot to cable2. Check the length for cutting fiber

3. Check Jig setting4. Insert the fiber to connector





Field Assembly Optical Connector - SC type

5. Make sure fiber bending6. Pull out the Jig7. Press the button
(Yellown cover)

8. Release the bending





Field Assembly Optical Connector - SC type

9. Lock the boot With yarn10. Cut the yarn11. Completion to assemble




- 2.0mm X 3.0mm (Flat) type / 1.6mm X 2.0mm (Flat) type

Field Assembly Optical Connector - SC type

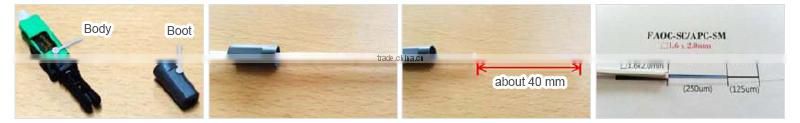

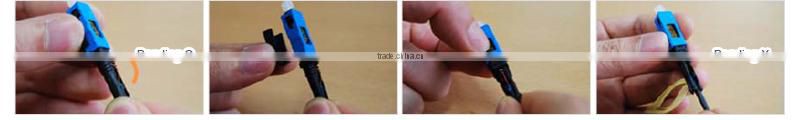

1. Check FAOC parts2. Insert boot to cable3. Remove outer jacket about 40 mm

4. Strip out UV coating after 20 mm





Field Assembly Optical Connector - SC type

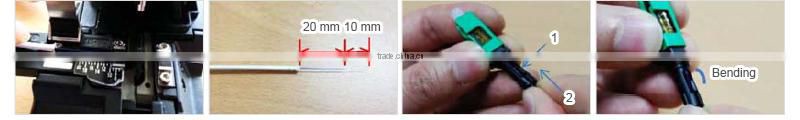

5. Cut the fiber with cleaver6. Check the length of fiber7. Insert the fiber to connector

8. Make sure fiber bending





Field Assembly Optical Connector - SC type

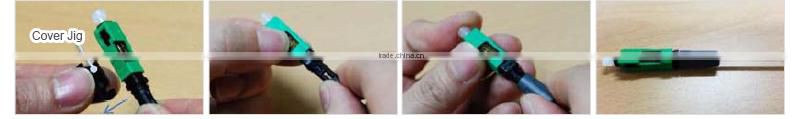

9. Remove cover Jig10. Press the button
(Yellow cover)
11. Lock the boot12. Completion to assemble
