GPS with 37dB LNA Antena
Share
- T/T MoneyGram Credit Card
- tianjin
- 1000000 Piece / Pieces per Month
Basic Info
| Brand Name | CoreLogic | Function | Other | Model Number | CLTX-37AN-1 |
|---|---|---|---|---|---|
| Place of Origin | Beijing, China | Screen Size | Other | Type | Gps Antenna |
| Use | Other | ||||
Product Description
Product Description
Brief introduction
CLTX-37AN-1 uses 3 stage Low Noise Amplifier,double filter. Widely used in GPS positioning and timing for navigation building etc.
GPS Antenna Specification
| Items | Indicators |
| Frequency Range (MHz) | 1575.42±2MHz |
| GAIN (dBi) | ≥37dB |
| Polarization | Right hand circular |
Axis Ratio(dB) | < 3 |
| Front to Back Ratio (dB) | > 10 |
| 3dB Beam Width (°) 3dB | 110±10 |
Supply Forms | COAXIAL |
| Operating Voltage (V/DC) | 3.0~5.0VDC |
DC Current (mA) | ≤45 |
Cable Type | CNT195 |
Connector Type | N |
Impedance (Ω) | 50Ω |
| ANTI-SURGE PERFORMANCE | ACCORDING GB/T 17626.5-1999;IDT IEC 61000-4-5:1995 STANDARD |
LNA Specification
| Items | Indicators |
Frequency Range (MHz) | 1575.42±5MHz |
| GAIN (dBi) | 34±2dB |
| Flatness in Bandwith (dB) | ≤2 |
| Noise Figure (dB) | ≤1.5 |
| VSWR | ≤2.0 |
| 1dB the dot of export (dBm) | ≥0 |
Operation Environment
Temperature:
Operating: -35°C to +76°C
Storage : -55°C to +95°C
Humidity: 0%-100% non-condensing

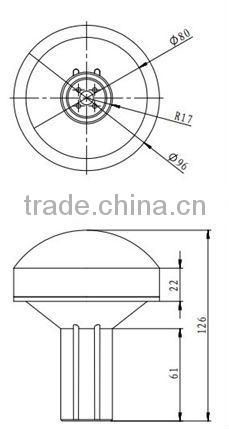

Outline Dimensions
Unit:mm
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
