High Definition-Power Line Communication KS700M2P
Share
Basic Info
| Certification | CE, ISO | Model No. | KS700M2P | Standard agreement | TCP/IP. UDp . Profinet . Home plug . ModbusTCP EEE 802.3. IEEE 802.3U. IEEE 802.3ab. EEE 1905.1. IEEE 1900. IEEE 1901etc |
|---|---|---|---|---|---|
| Type | Wired | Usage | Data Transmission | ||
Product Description
High Definition-Power Line Communication KS700M2P The enhanced KS700M2P is an upgrade from the standard model
Products Features:
● Wider operating voltage range, support DC12-36V power supply
● The power supply port and PLC channel port adopt the fool-proofing design.
● Enhanced high voltage isolation protection, stronger anti-interference.
● Improved surge protection, higher reliability.
● It is suitable for power line carrier communication below 400 V. The power line can be AC,DC and uncharged.
Technical data:
| Category | Classification | Technical indicators |
| Power supply | DC Power supply | DC: 12-48V |
| Performance parameter | Modulation type | OFDM modulation type |
| Transmission distance | Power line point-to-point 500 meter | |
| Ethernet | Support TCP/IP，UDP，10Mbps/100Mbps self-adaption | |
| RS485 | The default baud rate is 9600bit and supports the Modbus protocol. | |
| Multicast | Support IGMP multicast protocols | |
| Way of encryption | AES-128bit | |
| Overall power consumption | ≤3W | |
| Physical Layer / Bandwidth | 240M/92Mbps | |
| PLC Signal port | AC, DC or any two-core wire, such as power line, twisted pair. Coaxial line, parallel line, elevator accompanying cable, etc. | |
| Environmental requirement | Operating temperature | -40℃～85℃ |
| Operating humidity | 20%-95%（No condensation） | |
| Storage temperature | -40℃～85℃ | |
| External dimension | Colour | Black |
| Size | Length,width and height are：145*96*30mm | |
| Net weight | 350g |

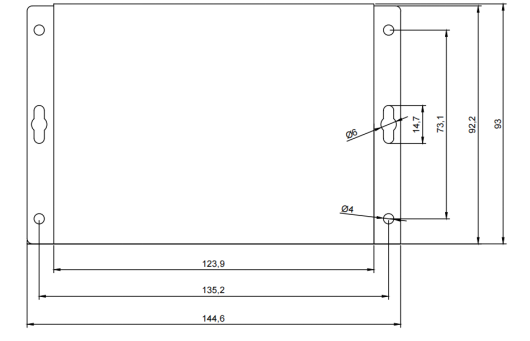

Exterior dimension
The PLC’s length, width and height are：93*144.6*30mm（without terminals)，
four fixing holes in both fixing lugs, fixed with screws M3.
Applications:
It has been widely used in various types of video transmission systems and industrial control systems，
such as three-dimensional parking garage, warehousing stereoscopic warehouse, intelligent air-car,
railway communication monitoring system, mine monitoring system,wind energy new energy, new energy
power station, industrial video surveillance and so on.
