High Definition-Power Line Communication KS700Q
Share
Basic Info
| Certification | CE, ISO | Model No. | KS700Q | Standard agreement | TCP/IP. UDp . Profinet . Home plug . ModbusTCP EEE 802.3. IEEE 802.3U. IEEE 802.3ab. EEE 1905.1. IEEE 1900. IEEE 1901etc |
|---|---|---|---|---|---|
| Type | Wired | Usage | Data Transmission | ||
Product Description
High Definition-Power Line Communication KS700Q
Robot DC type
Products Features:
● Intelligent age,hundred megabit bandwidth,stable signal,robot dedicated.
● The power supply voltage of the carrier KS700Q is DC12 ~ 24V / 1A, which supports DC or any
two-core line carrier communication below 56V.
● PLC channel port wiring needs to distinguish between positive and negative poles.
● The carrier supports bus, star, tree, and hybrid network topologies structure.
● Set up the masterslave machine to ensure that the power supply is matched and the wiring is correct
before powering on.
● Do not operate energized, do not touch the output terminal directly, do not connect the output terminal
short or connected to the housing.
Technical data:
| Category | Classification | Technical indicators |
| Power supply | DC Power supply | DC: 12-56V More than 1A |
| Performance parameter | Modulation type | OFDM modulation type |
| Transmission distance | Power line point-to-point 500 meter | |
| Ethernet | 10Mbps/100Mbps self-adaption | |
| Multicast | Support IGMP multicast protocols | |
| Way of encryption | AES-128bit | |
| Overall power consumption | ≤3W | |
| Physical Layer / Effective propagation distance | 240M/92Mbps | |
| Transmisson medium | Any two-core wire, such as power line, twisted pair.coaxial line, parallel line etc. | |
| Environmentalrequirement | Operating temperature | -40℃～85℃ |
| Operating humidity | 20%-95%（No condensation） | |
| Storage temperature | -40℃～85℃ | |
| External dimension | Colour | Black |
| Size | Length,width and height are：94.5*71*26.5mm | |
| Net weight | 250g |

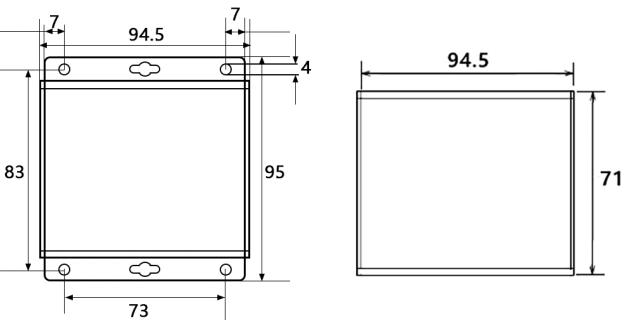

Exterior dimensions:
PLC KS700Q’s length, width and height are：94.5x95x26.5 mm(with fixed ear)，four fixing holes on both fixing lugs，
fixed with M3 screws.Without fixing lugs size is：94.5x71x26.5mm，can be fixed with cable ties or double-sided tape.
Applications:
It has been widely used in all walks of life，including slide rail robot, inspection robot, pipeline robot,
underwater robot, high-definition video surveillance and so on.
