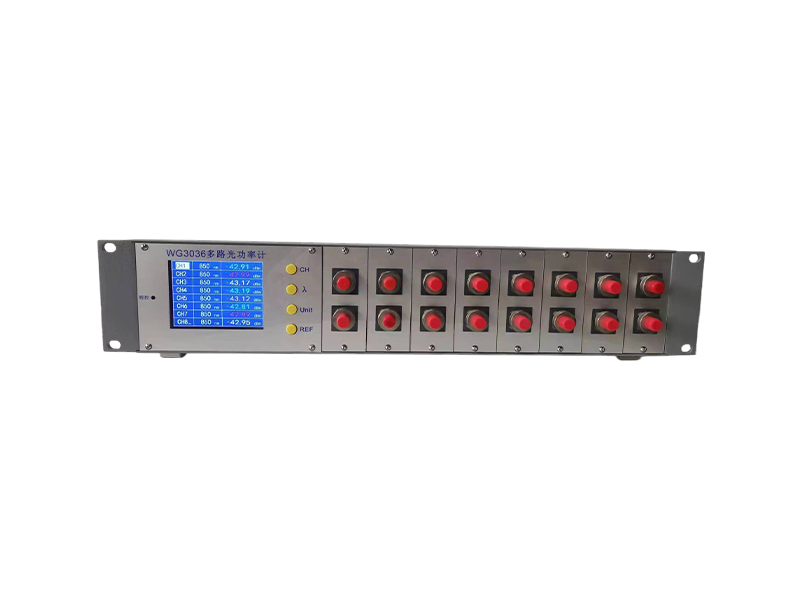

WG3036 16-Channel Parallel Optical Power Meter -850-1625nm, 0.1dB Accuracy, USB/LAN Programmable, for 400G/800G Optical Module & O-Band Testing

The WG3036 is a 16-channel benchtop optical power meter engineered for high-density parallel testing in optical module production, O-band device characterization, and automated test equipment (ATE) integration. All 16 channels operate independently across 9 common wavelengths—850/1270/1290/1310/1330/1490/1550/1577/1625nm—enabling simultaneous multi-port measurement without the time skew introduced by optical-switch polling. The InGaAs detector delivers 0.1dB accuracy, 0.01dB resolution, and a dynamic range of −70 to +10 dBm (Type A) or −50 to +26 dBm (Type B), with fast refresh rates and a color LCD for real-time monitoring of all channels. USB and LAN interfaces support full SCPI program control, allowing seamless integration into automated production lines and lab test systems. The WG3036 is purpose-built for 400G/800G optical module testing, TOSA/laser PIV and LIV characterization, three-temperature aging, and silicon photonics/CPO R&D and volume production. Its compact benchtop form factor (450×320×88mm, approx. 4kg) and AC 100–250V universal power input make it ready for global deployment.
