Chinese Block Ice Machine Price for Nigeria
Share
- T/T MoneyGram Credit Card
- Guangzhou
- 30 Set / Sets per Month
Basic Info
| After-sales Service Provided | Engineers available to service machinery overseas | Brand Name | CBFI | Capacity | 1 ton to 100 tons |
|---|---|---|---|---|---|
| Certification | CE | Condition | New | Dimension(L*W*H) | 3360x2110x1565mm |
| Ice Shape | Ice Block | Model Number | MB Series | Place of Origin | Guangdong, China |
| Power(W) | 7.77kw | Voltage | 220V/3Ph/60Hz,380V/3Ph/50Hz | Warranty | 1 year |
| Weight | 900kg | ||||
Product Description
Product Description
Block Ice Machine Price
1. Ice block machine have brine design, containerized design and direct evaporate design (use aluminum make ice cans).
2. Ice block machine for producing big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg......
3. It is big ice so can keep for long time. For some countries, specially, Africa country the power supply is not steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
4. Daily capacity of ice block machine can be from 1ton to 100tons.
Model | Capacity | Compress Power | Motor Power | Voltage | Frequency | Outer Dimension(mm) | ||
No. | Ton/24h | KW | KW | V | Hz | L×W×H | ||
MB10 | 1.0 | 3.8 | 0.55 | 230/380/415 | 50/60 | 1200 | 1000 | 600 |
MB15 | 1.5 | 5.6 | 0.75 | 230/380/415 | 50/60 | 1600 | 1200 | 800 |
MB20 | 2.0 | 7.5 | 1.5 | 230/380/415 | 50/60 | 1800 | 1200 | 800 |
MB30 | 3.0 | 11.3 | 1.5 | 230/380/415 | 50/60 | 2100 | 1200 | 1000 |
MB40 | 4.0 | 15.0 | 1.5*2 | 230/380/415 | 50/60 | 3000 | 1470 | 1000 |
MB50 | 5.0 | 18.8 | 1.5*2 | 230/380/415 | 50/60 | 4200 | 1470 | 1200 |
MB60 | 6.0 | 22.5 | 1.5*2 | 230/380/415 | 50/60 | 4800 | 1470 | 1200 |
MB80 | 8.0 | 30.0 | 2.0*2 | 230/380/415 | 50/60 | 5700 | 1470 | 1200 |
MB100 | 10.0 | 37.5 | 2.0*2 | 230/380/415 | 50/60 | 7000 | 1680 | 1200 |
MB120 | 12.0 | 45.0 | 2.5*2 | 230/380/415 | 50/60 | 8500 | 1680 | 1200 |
MB150 | 15.0 | 56.3 | 3.0*2 | 230/380/415 | 50/60 | 9800 | 1680 | 1200 |
MB200 | 20.0 | 56.0 | 5.5*2 | 230/380/415 | 50/60 | 11800 | 1680 | 1500 |
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.It didn’t mention size of cooling tower, cooling tower is usually installed in the outside.
Machine running condition: water temperature: 23Centi degree, evaporate temperature:-12Centi degree, condensing temperature 40Centi degree, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.

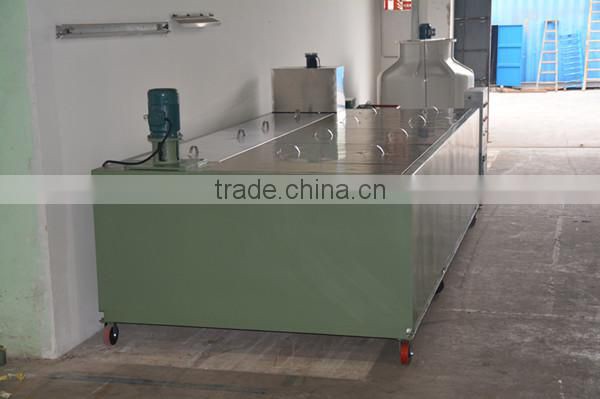

This is the complete block ice machine. From this picture, you can also know how to connect the machine with cooling tower. It is very easy, you just need to lock the water pipe.

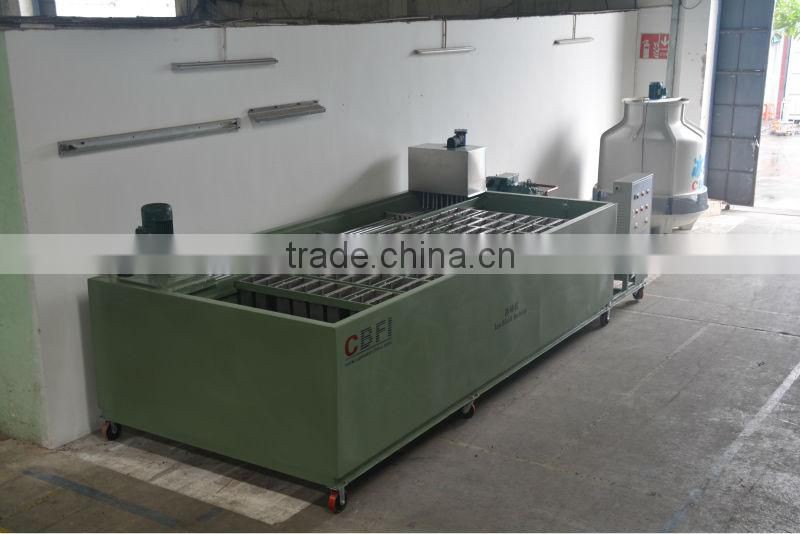

On the top of the brine tank, there are the stainless steel 304 covers.
The block ice can and the coil pipe evaporator are inside the brine tank.
Putting the block ice inside the cold room. We produce the cold room also.
1. Standard wooden case.
2. Completely ice machine contain: machine, brine tank,ice block cans,cover,cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for installing the machine will be provided.
5. Our factory also can produce cold room for store ice.
6. If each block ice is heavy we suggest customer buy crane system for automatically take out ice and filling water in to ice block cans.
7. For brine design need use salt. Brine no need change often, just need discharge the brine and clean the tank each year.
8. We will offer a meter to customer for test density of brine.
1.We have a large after-sale service team, all the techinician are very experienced in this field. They always went to differetn countries to serve customers like you;
2.The warranty of the whole machine is 12 months.
1. We started to research, develop and sell all kind of ice making machines and cold room since2004; Our main products are : block ice machine, cube ice machine, tube ice machine, plate ice machine, flake ice machine, bag block ice machine and cold room;
2. Our factory is located in Guangzhou city. It is near the Baiyun International Airport and it is closed to two fammouse port of south China:Huangpu port and Nansha port. It is convenient for our customers to come to visit our factory and to load the transport the ice machines.
3. We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
Welcome more and more customers come to us, visit our factory and give us suggestion, let us make progress, thanks!
- The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
The deposit is 30%, after we receive your deposit, we will start to produce the machine for you.
The balance 70% should be paid before shipping.
The delivery time normally is 30 days after receive the deposit.
If necessary, we will arrange the shipping for you.
