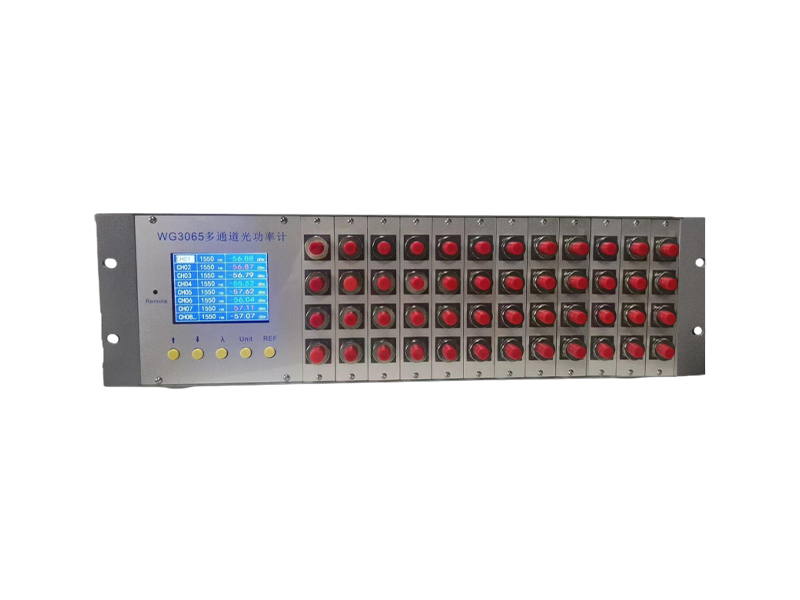

WG3065 48-Channel Modular Optical Power Meter-850-1625nm, 0.1dB, USB/LAN Programmable, for Optical Module & Passive Component Production Line Testing

The WG3065 is a 48-channel modular benchtop optical power meter purpose-built for high-throughput production-line testing of optical modules, passive components, and transceivers. With a configurable channel count up to 48, it eliminates the bottleneck of sequential single-port measurement by acquiring all channels in parallel, dramatically shortening test cycle time in volume manufacturing. Each channel supports independent wavelength settings across 9 commonly used wavelengths from 850nm to 1625nm. The InGaAs detector delivers 0.1dB accuracy, 0.01dB resolution, and dual-range coverage of −70 to +10 dBm (Type A) or −50 to +26 dBm (Type B). A color LCD presents real-time readings, while USB and LAN interfaces support full SCPI programmable control for seamless ATE and automated production-line integration. The WG3065 is engineered for optical device inspection, optical transceiver module tuning, passive component batch verification, and fiber network testing—wherever high channel count and fast refresh matter more than portability. Its compact chassis (450×320×88mm, approx. 4kg) and AC 100–250V input make it ready for global production floors.
